High Speed Fabric Doors Model 883
-

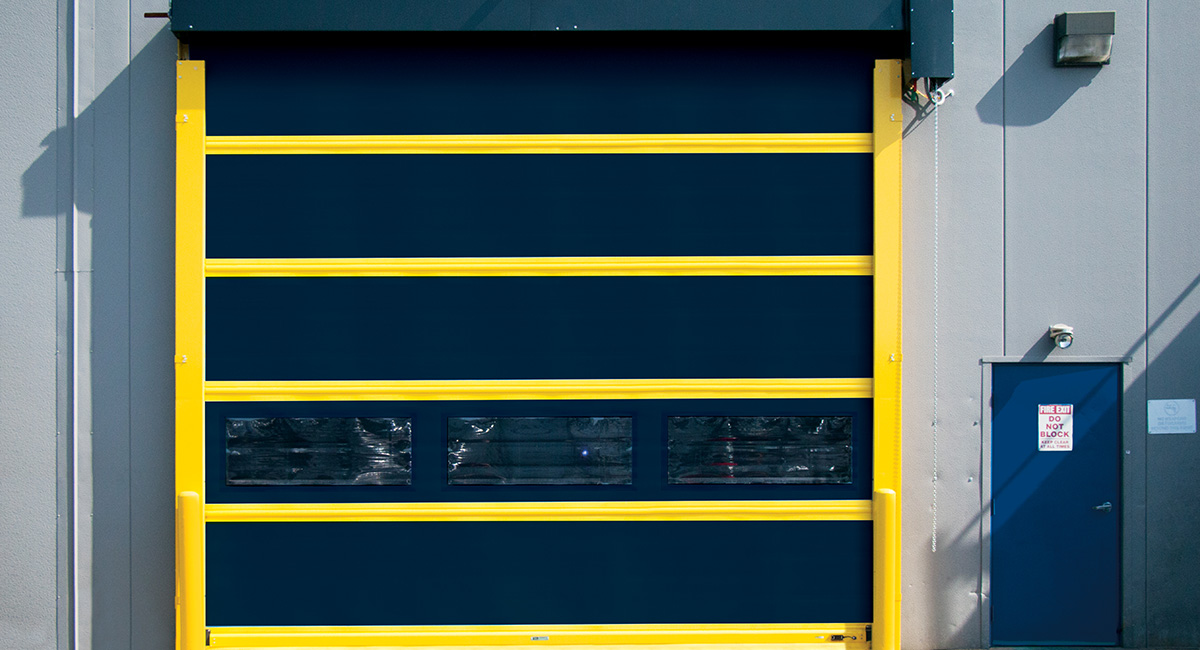

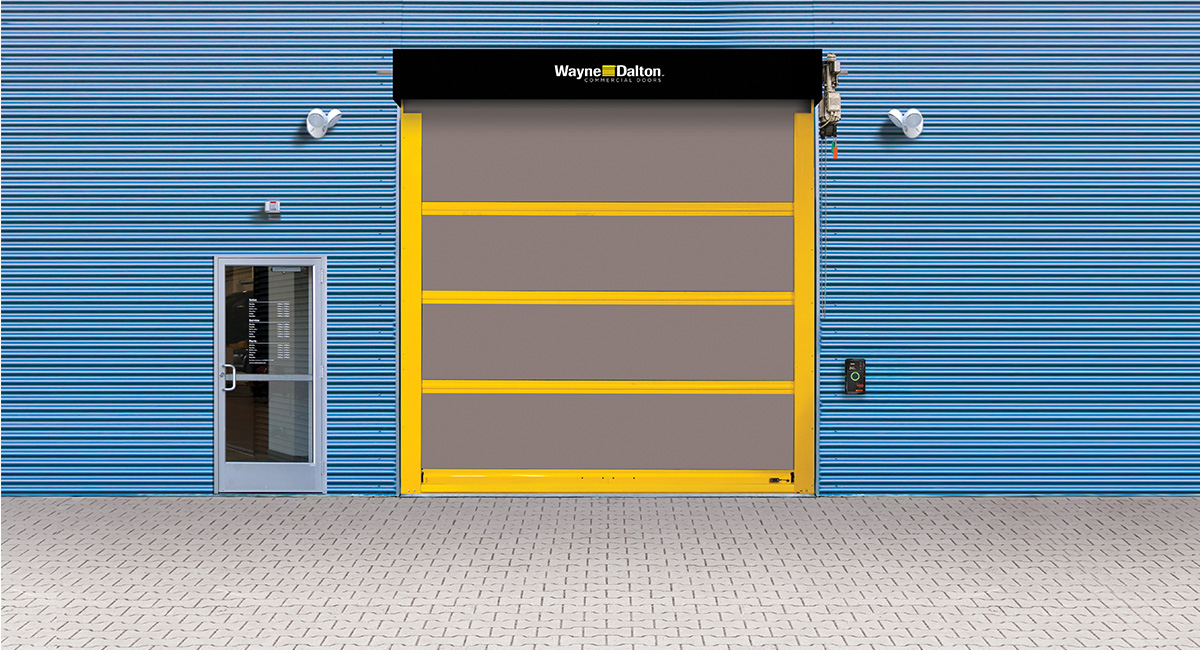

![Strutted Exterior High Speed Fabric Door]()

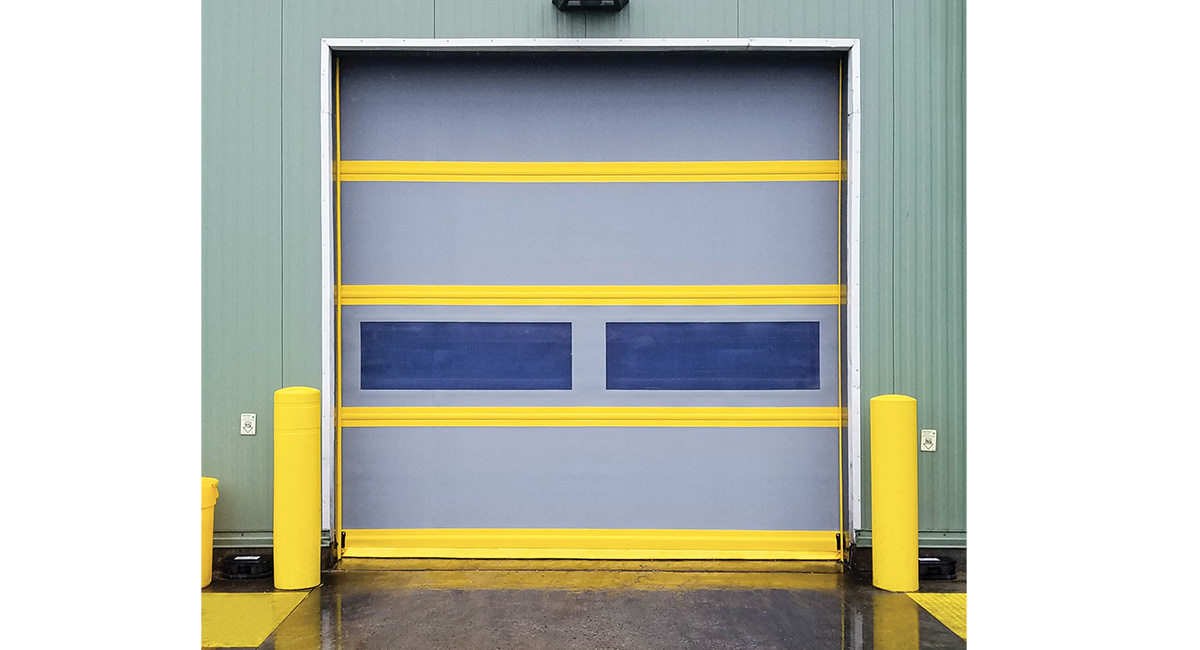

High Speed | Fabric | Model 883 | Gray
-
![Strutted Exterior High Speed Fabric Door]()

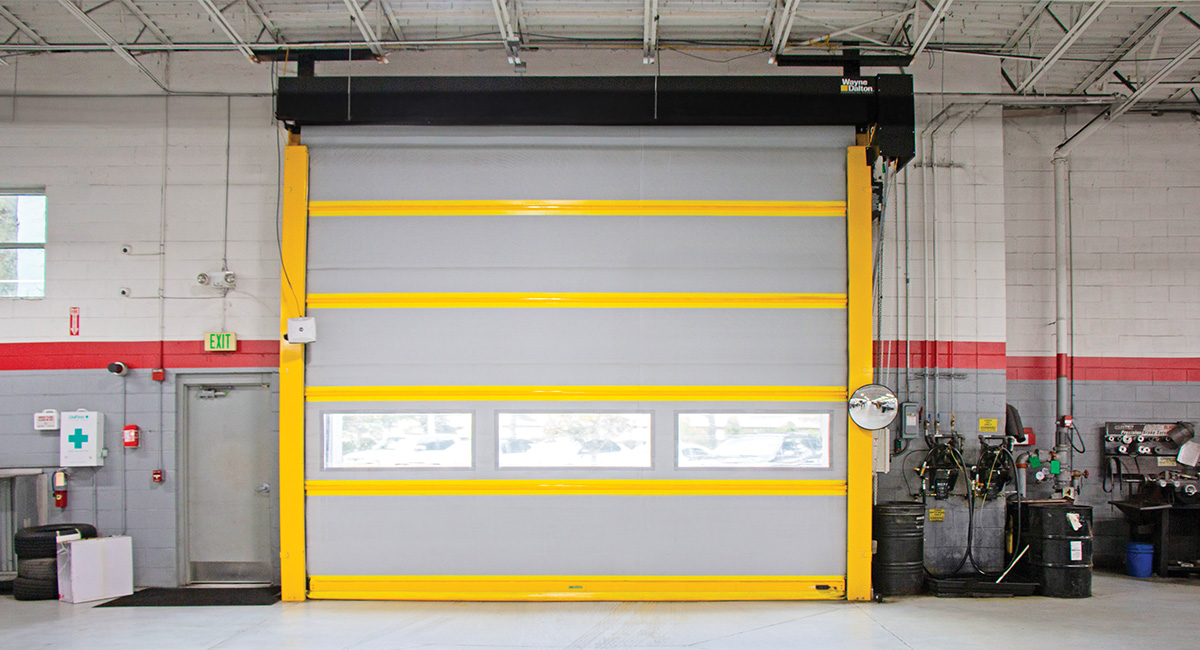

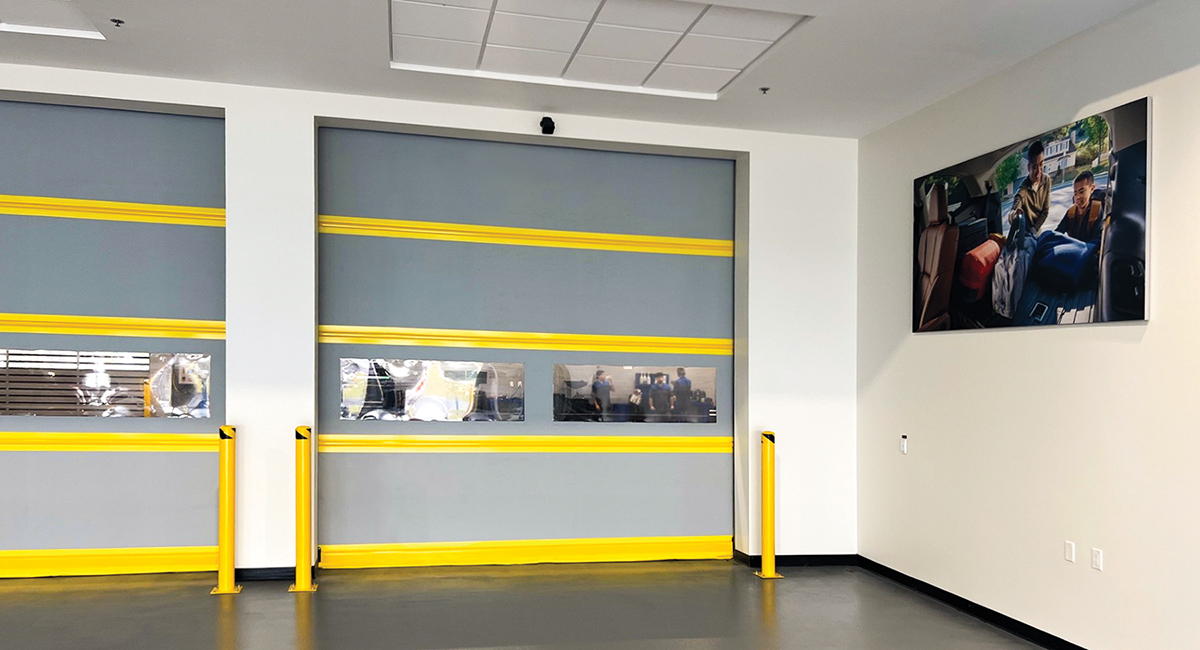

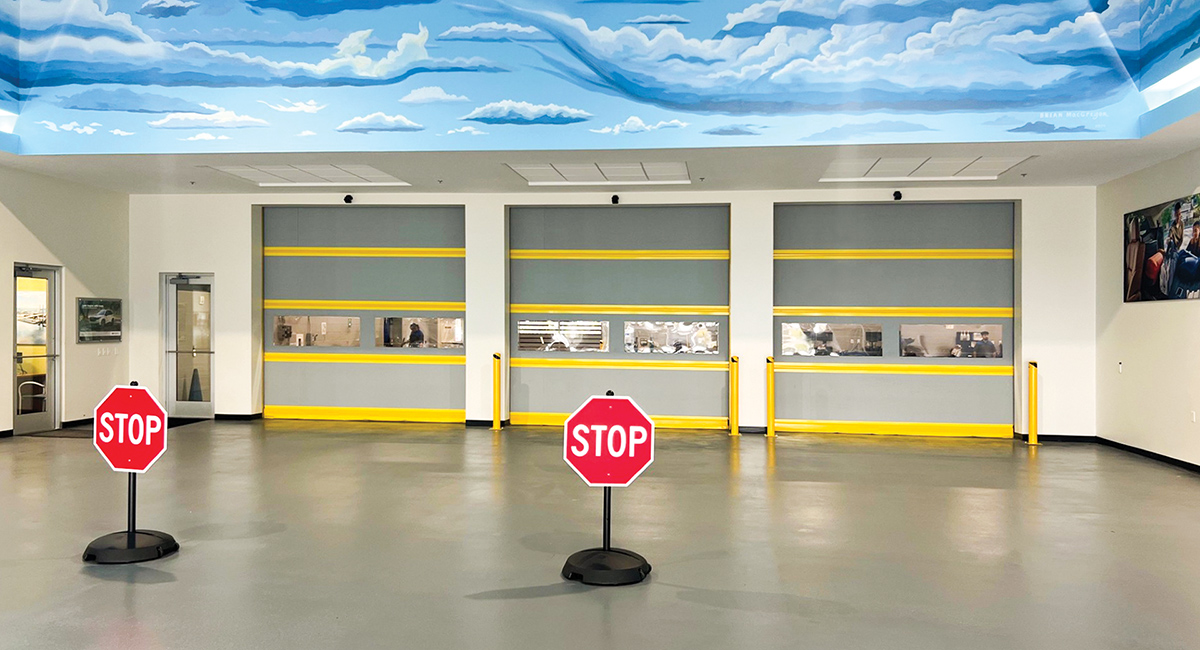

High Speed | Fabric | Model 883 | Gray | Lites
-
![Strutted Exterior High Speed Fabric Door]()

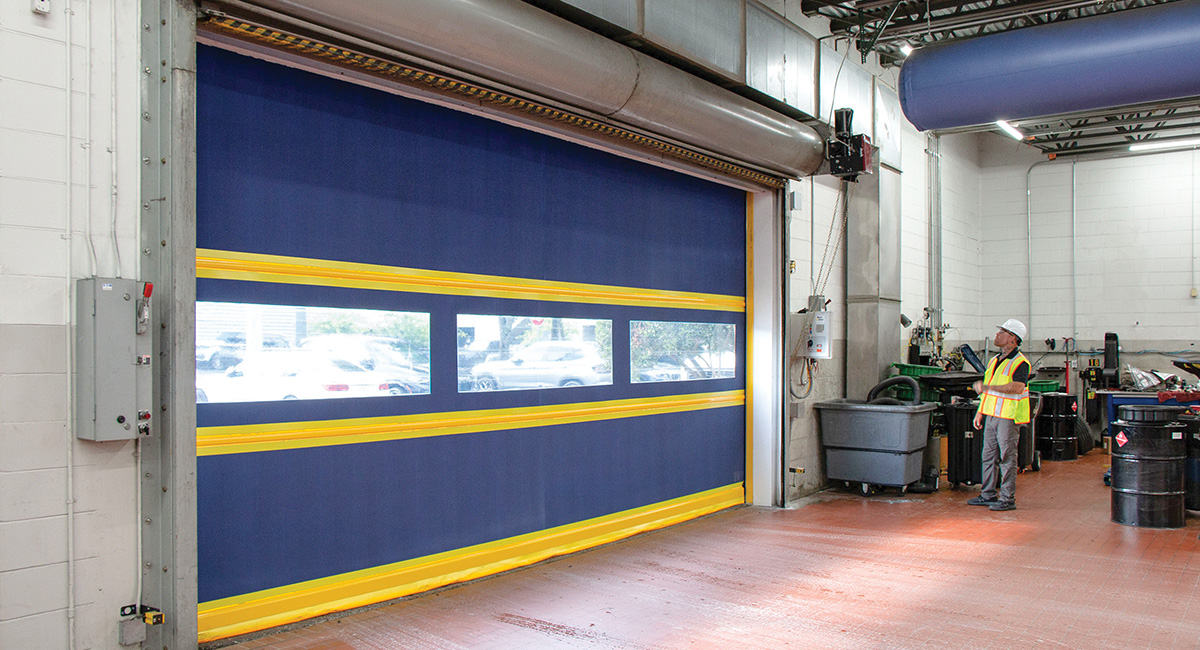

High Speed | Fabric | Model 883 | Blue | Lites
High Speed Fabric Doors Model 883
Made of rugged fabric material, the Model 883 ADV-Xtreme strutted exterior high speed fabric door is designed for applications where a fast-acting exterior door is needed. e strutted design allows for quick section replacement while reducing curtain deflection under pressure. This door can withstand a pressure of up to 19.5 psf. Model 883 ADV-Xtreme strutted exterior high speed fabric door is designed to be low maintenance and includes the breakaway impact detection and push button self-repair, along with plug and play wiring for robust operating and easy troubleshooting.
Ideal Applications Include:
Manufacturing / Heavy Manufacturing | Warehouse | Parking Garages | Auto / Transit | Food and Beverage
Features
| Standard Construction | Model 883 |
| Max. Width | 20' |
| Max. Height | 20' |
| Max. Opening Speed | up to 65” per second |
| Max. Closing Speed | up to 40” per second |
| Bottom Bar Breakaway | Yes |
| Wind Struts | Metal struts and roller wind locks |
| Curtain Material | 3 layers of PVC-coated polyester with 2 layers of polyester weave |
| Header Braces | Multiple braces across entire width strengthen and combat sagging |
| Hood | Protection from debris and moisture |
| Operation | Direct-drive motor and gearbox system with field changeable universal handing and door stop safety device |

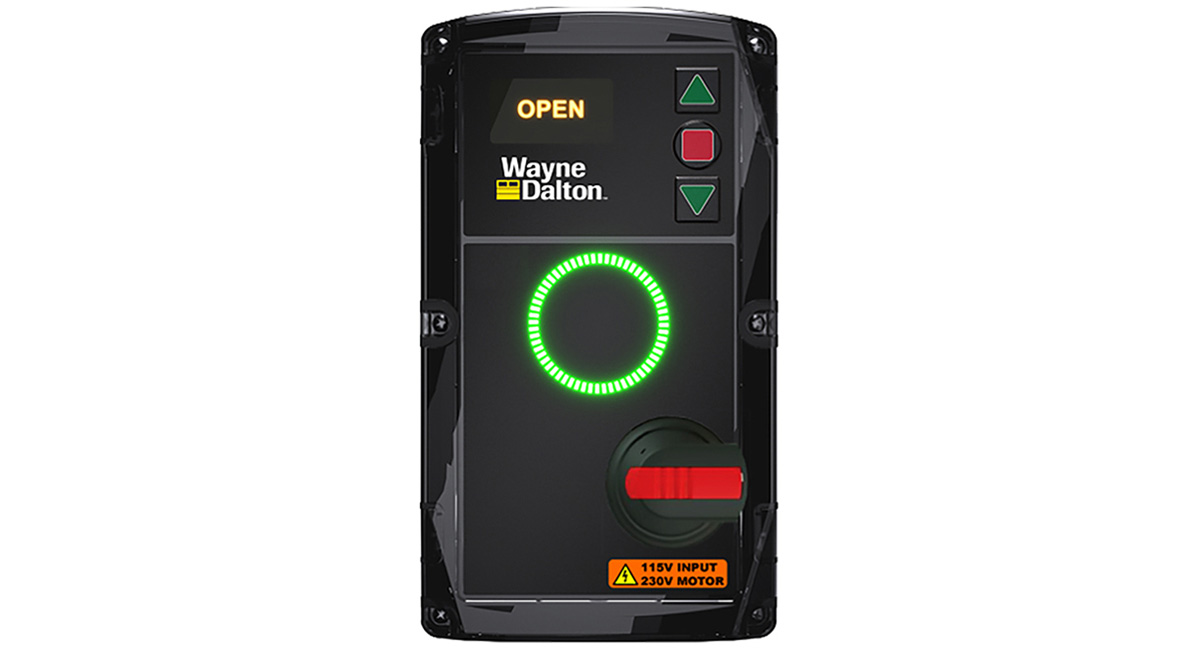

| Control Panel | Variable frequency drive, self-diagnostic, programmable service reminders, padlockable fused disconnect NEMA 4X rated, cULus listed |
| Supply Voltages** | 120V AC 1 PH 208V AC 1 PH† 220V AC 1 PH 208V AC 3 PH† 230V AC 3 PH 460V AC 3 PH 575V AC 3 PH† |
| Safety Features | Obstruction Safety Detection Reversing Sensing Edge |
| Wind Load* | up to 19.5 psf |
*Wind load is the ultimate pressure tested at a door width of 20'
**Single phase available u to 10"x10".
(†Requires stand-alone mounted transformer)
Benefits
High Performance, Low Maintenance Design
- Standard hood blocks moisture and debris from impeding door operation
- Springless design requires minimal interruption for maintenance
- Direct-mounted gear drive minimizes wear and tear
- Variable frequency drive eliminates sudden jolts from door start and stop operation
- Patented breakaway system design with impact detection and push button self-repair
Rugged Fabric Construction
- Ideal for exterior applications
Field Repairable
- Hinged guides provide easy access for maintenance
Installer Friendly
- Pre-assembled sub-assemblies for easier installation
- Plug and play wiring reduces the need for a licensed electrician
Excellent Wind Load Protection
- Patented roller windlocks on struts
- Bottom windlocks for pressure protection
Warranty
- 5 Year Limited Warranty on drive motor and gearbox
- 1 Year Limited Warranty on all other components
Similar Products
-
High Speed Fabric Doors Model 884 ADV-Xtreme
Model 884 ADV-Xtreme is a heavy-duty fabric door for extreme weather, featuring wind struts, quick panel replacement, impact detection, self-repair, and low maintenance.
View Details High Speed Fabric Doors Model 884 ADV-Xtreme -
High Speed Rubber Doors Model 885
Model 885 ADV-Xtreme is a high-speed rubber door built for large exterior openings, with reinforced layers, impact detection, self-repair, and low maintenance for extreme environments.
View Details High Speed Rubber Doors Model 885 -

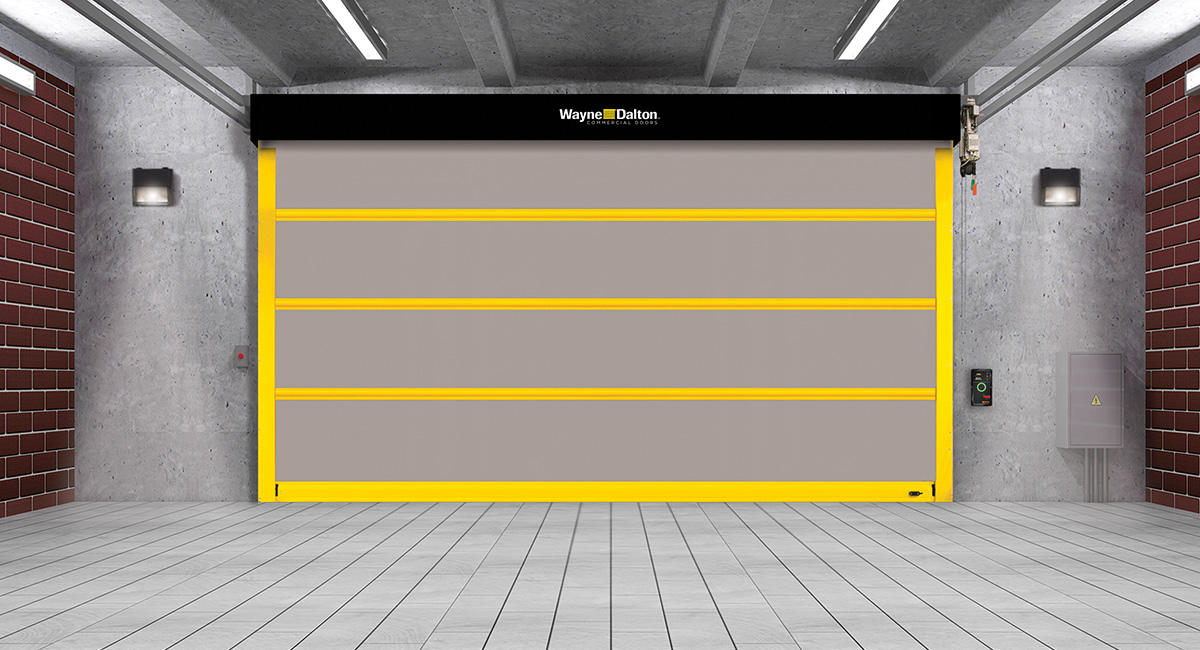

High Speed Fabric Doors Model 882 ADV-Xtreme
