High Speed Fabric Doors Model 884 ADV-Xtreme

High Speed Fabric Doors Model 884 ADV-Xtreme

The heaviest fabric door in the ADV-Xtreme series, Model 884 ADV-Xtreme is a thick high speed fabric door designed for exterior applications where weather elements may be extreme. The patent-pending articulating roller wind strut reduces noise and allows the door to operate under higher wind load. The fabric strutted exterior door is designed to allow for quick panel replacement while reducing curtain deflection under pressure. This door can withstand a pressure of up to 22.0 psf. Model 884 ADV-Xtreme is designed to be low maintenance and includes such features as breakaway impact detection and push button self-repair, along with plug and play wiring. The heavy-duty fabric door strutted exterior is built for maximum strength in high wind pressure regions.


Ideal Applications Include:

Manufacturing / Heavy Manufacturing  |  Warehouse / Distribution   |  Large Opening   |   Mining   |  Parking Garages   | Auto / Transit

Features

Standard ConstructionModel 884
OpeningsExterior
Max. Width24'
Max. Height18’ at 24' wide / 20' at 23' wide
Max. Opening Speedup to 55” per second
Max. Closing Speedup to 40” per second
Breakaway Self-resetYes
Hinged Wind Struts4" articulating hinged roller wind strut
Curtain Material3 layers of PVC-coated polyester with 2 layers of polyester weave
OperationDirect-drive motor and gearbox system with field changeable universal handing and door stop safety device
Control PanelVariable frequency drive, self-diagnostic, programmable service reminders, padlockable fused disconnect NEMA 4X rated, cULus listed
Supply Voltages208V AC 3 PH
230V AC 3 PH
460V AC 3PH
575V AC 3 PH
Safety FeaturesObstruction Safety Detection
Reversing Sensing Edge
Wind Load*up to 22.0 psf

*Wind load is the ultimate pressure tested at a door width of 20'
(†Requires stand-alone mounted transformer)


Benefits

Performance Under Pressure

  • Patent-pending articulating hinged roller wind strut reduces noise and allows the door to operate under pressure
  • Strutted design allows for quick panel replacement while reducing curtain deflection under pressure
  • Heavy-duty .188" high strength steel guides are ideal for high pressure areas
  • A bottom windlock provides additional static pressure resistance

High Performance, Low Maintenance Design

  • Springless design requires minimal interruption for maintenance
  • Direct-mounted gear drive minimizes wear and tear
  • Variable frequency drive eliminates sudden jolts from door start and stop operation
  • Patented breakaway system design with impact detection and push button self-repair

Field Repairable

  • Hinged guides provide easy access for maintenance

Rugged Fabric Construction

  • Ideal for exterior applications
  • Rough environmental interior applications

Installer Friendly

  • Pre-assembled sub-assemblies for easier installation
  • Plug and play wiring reduces the need for a licensed electrician

Warranty

  • 5-Year Limited Warranty on drive motor and gearbox
  • 1-Year Limited Warranty on all other components

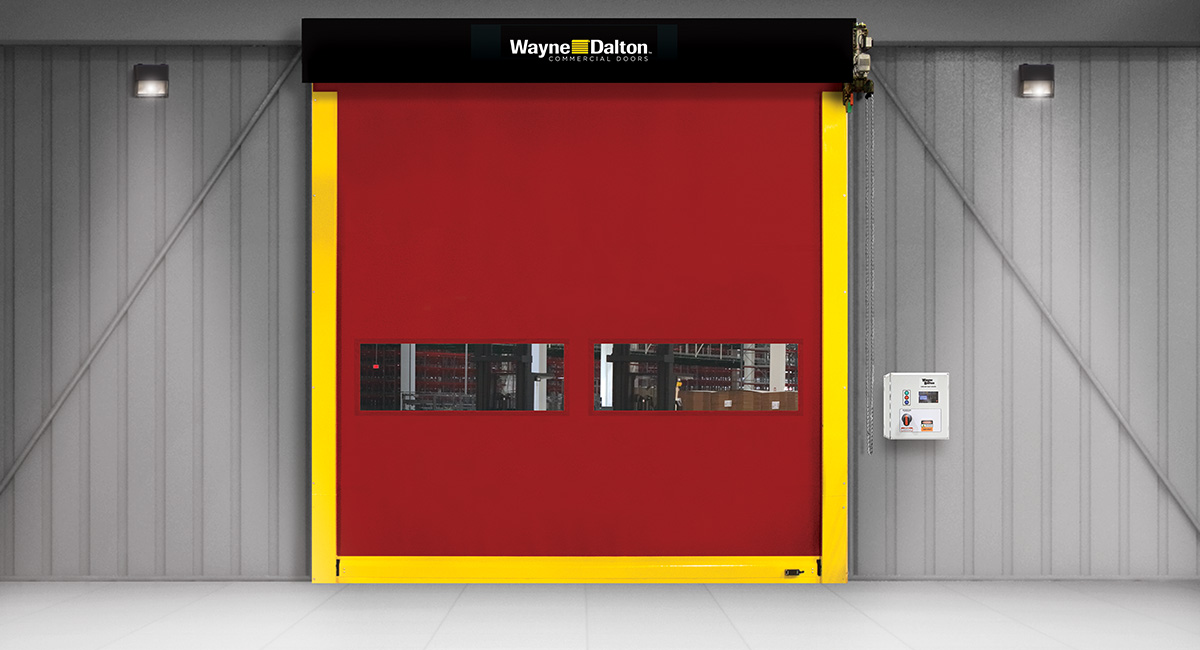

High Speed Interior Fabric Door

High Speed Interior Fabric Doors Model 881 ADV-Xtreme

High Speed Fabric Doors 881

View Details High Speed Interior Fabric Doors Model 881 ADV-Xtreme

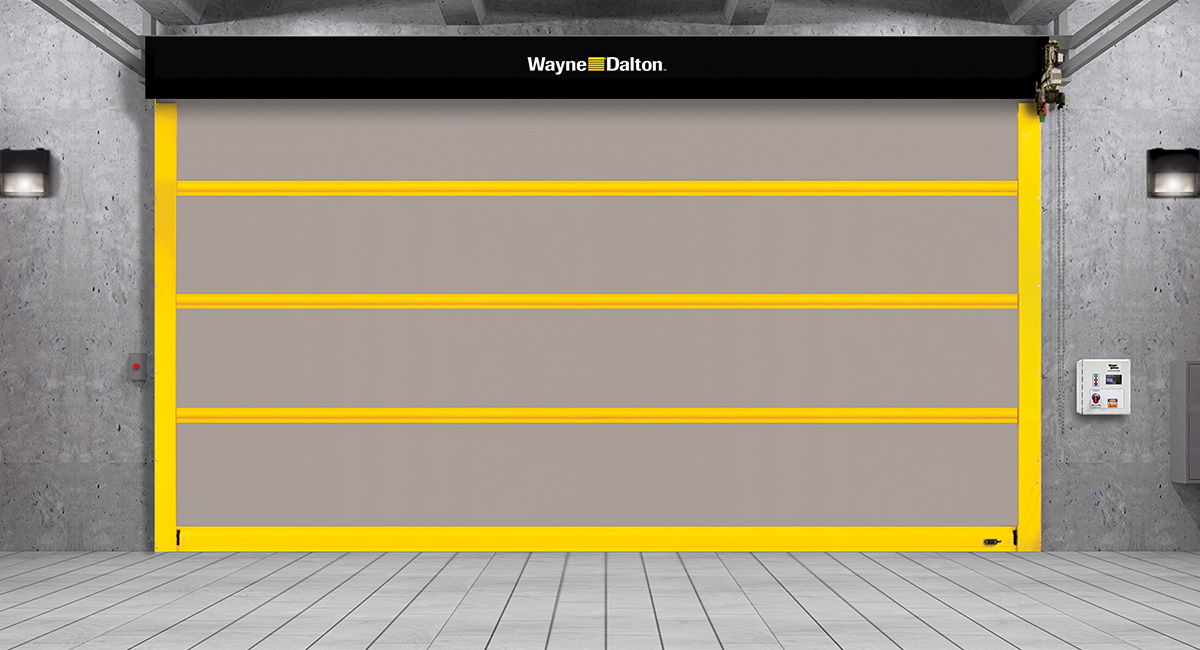

Strutted Interior and Exterior High Speed Fabric Door

High Speed Fabric Doors Model 882 ADV-Xtreme

High Speed Fabric Doors 882

View Details High Speed Fabric Doors Model 882 ADV-Xtreme

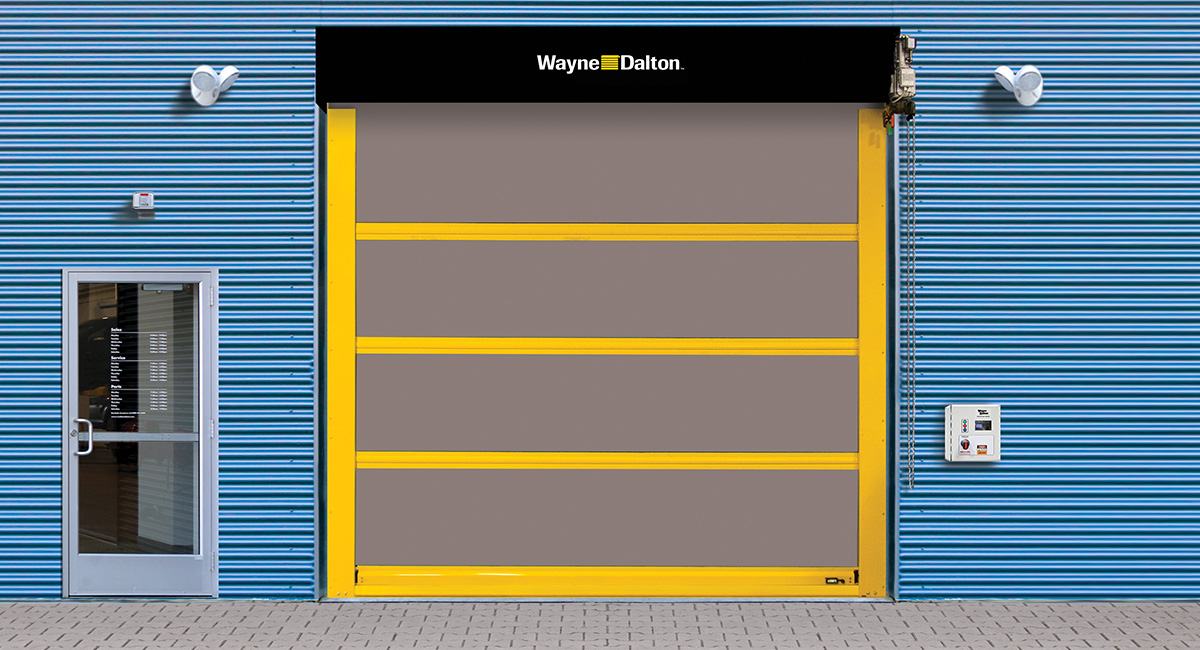

Strutted Exterior High Speed Fabric Door
