High Speed Fabric Doors Model 882 ADV-Xtreme
High Speed Fabric Doors Model 882 ADV-Xtreme

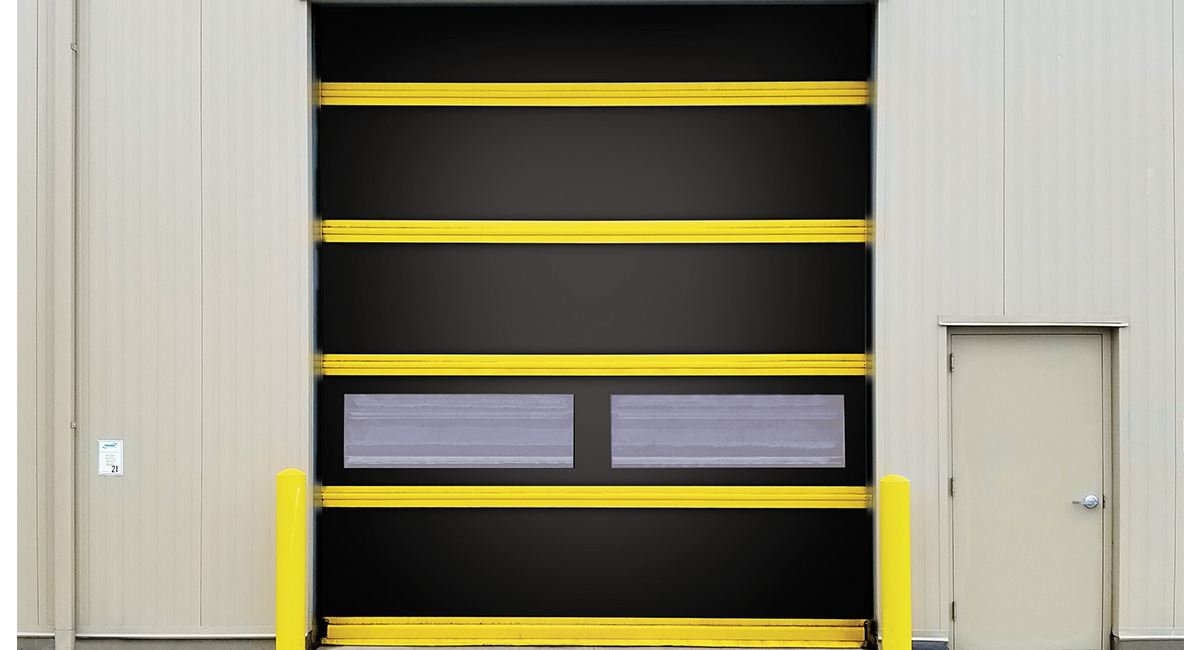

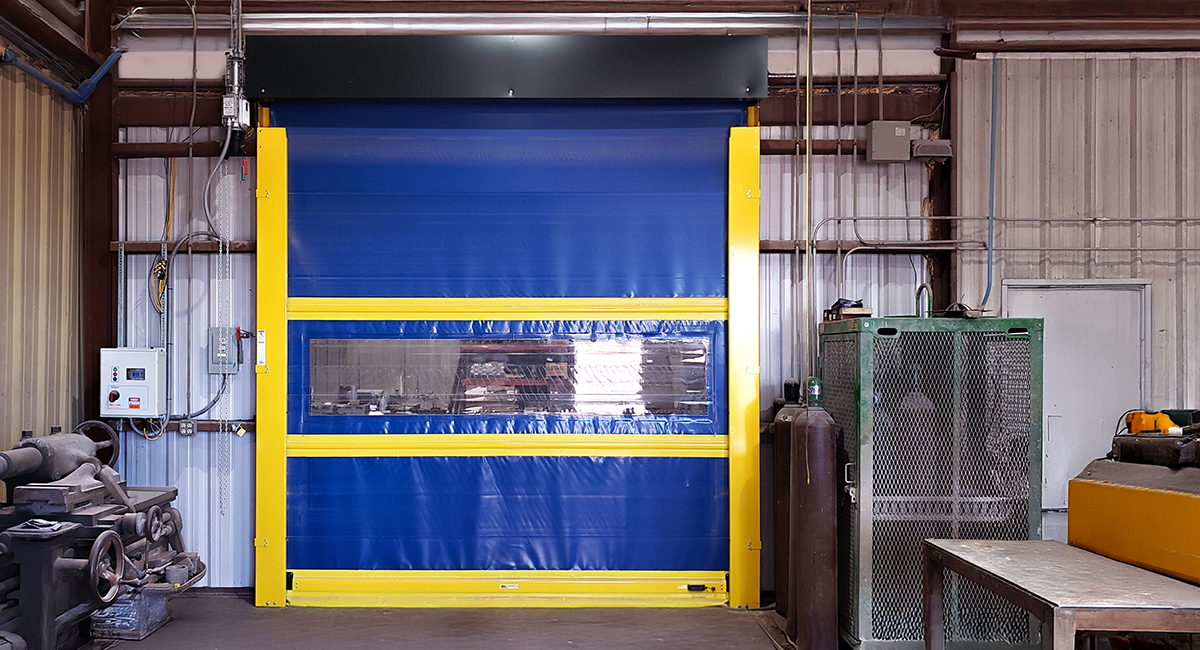

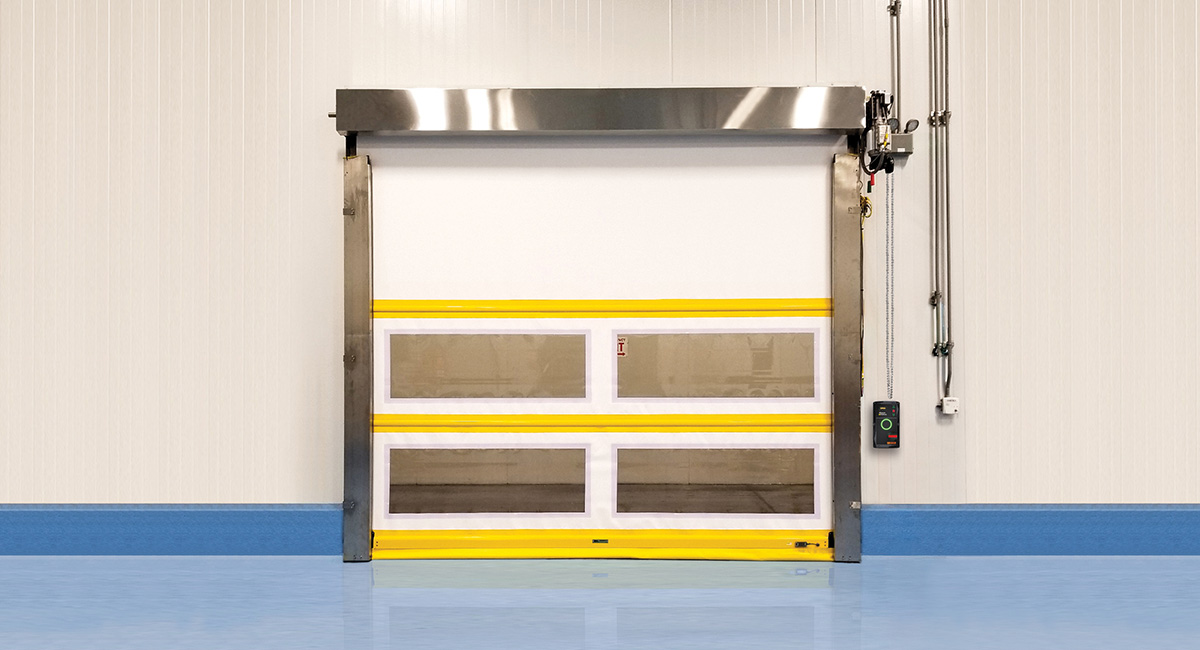

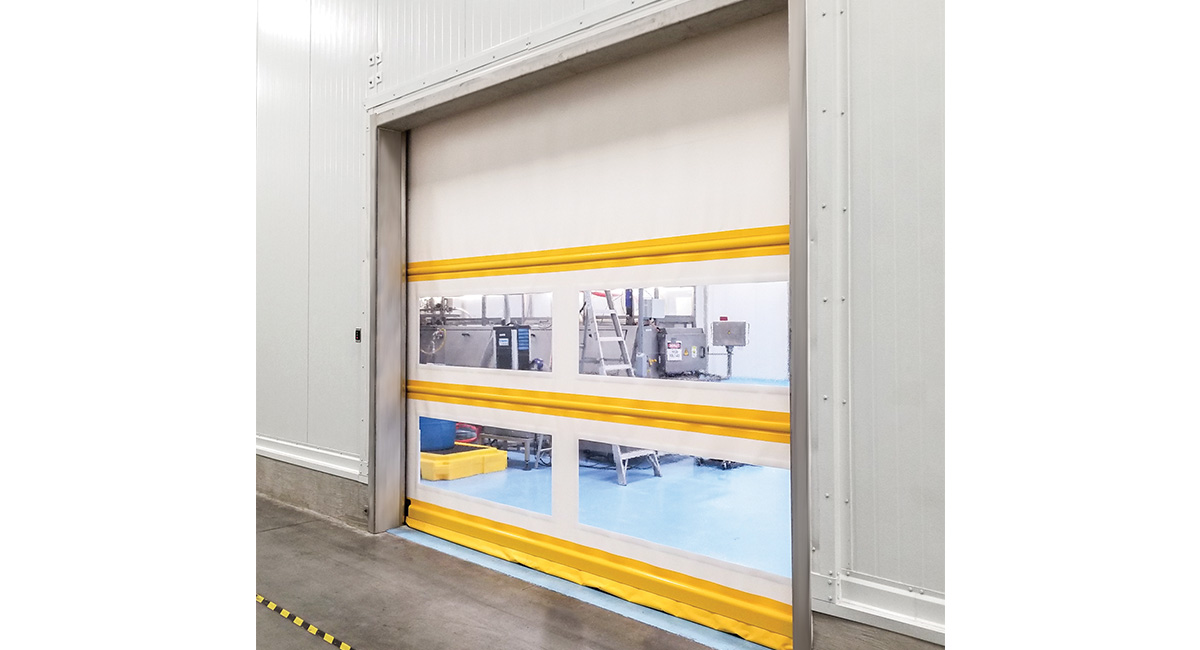

Model 882 ADV-Xtreme strutted interior high speed fabric door is designed to be low-maintenance and is a durable door that is built to last. This high-performance door is for interior or exterior applications featuring breakaway impact detection and push button self-repair, along with plug and play wiring. Model 882 ADV-Xtreme’s strutted design allows for quick section replacement while reducing curtain deflection under pressure and can withstand a pressure of up to 4.0 psf.
Ideal Applications Include:
Manufacturing / Heavy Manufacturing | Warehouse | Distribution Facilities | Food & Beverage | Cold Storage | Auto / Transit
Features
Standard Construction | Model 882 |
Max. Width | 15' |
Max. Height | 16' |
Max. Opening Speed | up to 65” per second |
Max. Closing Speed | up to 40” per second |
Breakaway Self-Reset | Yes |
Interior Application Curtain Material | 2 layers of PVC-coated polyester with 1 layer of polyester weave |
Operation | Direct drive motor and gearbox system with field changeable universal handing and door stop safety device |
Hood | Protection from debris and moisture |
Control Panel | Variable frequency drive, self-diagnostic, programmable service reminders, pad-lockable fused disconnect NEMA 4X rated, cULus listed |
Supply Voltages** | 120V AC 1 PH 208V AC 1 PH† 220V AC 1 PH 208V AC 3 PH† 230V AC 3 PH 460V AC 3 PH 575V AC 3 PH† |
Safety Features | Obstruction Safety Detection Reversing Sensing Edge |
Wind Load* | up to 4.0 psf |
*Wind load is the ultimate pressure tested at a door width of 16'
**Single phase available up to 10' doors.
(†Requires stand-alone mounted transformer)
Benefits
High Performance, Low Maintenance Design
- The strutted design allows for quick section replacement while reducing curtain deflection under pressure
- Springless design requires minimal interruption for maintenance
- Direct-mounted gear drive minimizes wear and tear
- Variable frequency drive eliminates sudden jolts from door start and stop operation
- Patented breakaway system design with impact detection and push button self-repair
- For exterior use with optional fabric upgrade
Field Repairable
- Hinged guides provide easy access for maintenance
Installer Friendly
- Pre-assembled sub-assemblies for easier installation
- Plug-and-play wiring reduces the need for a licensed electrician
Warranty
- 5-year Limited Warranty on drive motor and gearbox
- 1-year Limited Warranty on all other components
