Features

Our 7100 Series is made with paint or stain grade wood with optional insulation (R-value* up to 7.6). These wood panel garage doors are built with 1-5/8” thick rail and stile construction with panel inserts.

*Wayne Dalton uses a calculated door section R-value for our insulated doors.

---

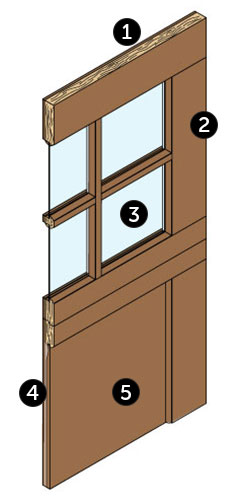

Construction



1. Rail

2. Stile

3. Glazing

4. Plywood

5. Panel Insert


• Panel Styles

  Choose Your Design
  Choose from a variety of distinctive panel designs—Clydesdale, Appaloosa, Mustang, Palomino and Stallion. A multitude of facing options ensure you get the perfect door. Variations for all styles include three-section and four-section square or arched panels.

  7101 Clydesdale

  • 3-Section Square

  • 3-Section Arched

  • 4-Section Square

  • 4-Section Arched

  7101 Clydesdale Grooved

  • 3-Section Square

  • 3-Section Arched

  • 4-Section Square

  • 4-Section Arched

  7102 Appaloosa

  • 3-Section Square

  • 3-Section Arched

  • 4-Section Square

  • 4-Section Arched

  7102 Appaloosa Grooved

  • 3-Section Square

  • 3-Section Arched

  • 4-Section Square

  • 4-Section Arched

  7103 Mustang

  • 3-Section Square

  • 3-Section Arched

  • 4-Section Square

  • 4-Section Arched

  7104 Palomino Narrow

  • 3-Section Square

  • 3-Section Arched

  • 4-Section Square

  • 4-Section Arched

  7104 Palomino Wide

  • 3-Section Square

  • 3-Section Arched

  • 4-Section Square

  • 4-Section Arched

  7105 Stallion Narrow

  • 3-Section Square

  • 3-Section Arched

  • 4-Section Square

  • 4-Section Arched

  7105 Stallion Wide

  • 3-Section Square

  • 3-Section Arched

  • 4-Section Square

  • 4-Section Arched

  Additional window options available. Designs may differ depending on location. See your Wayne Dalton dealer for more information.

• Wood

  Choose Your Wood

  While the base of our 7100 Series begins with authentic stile and rail construction on hemlock frame, homeowners can customize their carriage house wood garage doors with their choice of paint- and stain-grade woods such as Hemlock, Western Red and Knotty Cedar or Mahogany. As solid as they are handsome, each two-inch-thick door features durable four-layer construction designed to weather the elements while maintaining its classic good looks. Energy-efficient insulation is also available upon request.

  • Meranti

  • Sapele Mahogany

  • Hemlock

  • Western Red Cedar

  • Knotty Cedar

  • Douglas Fir

  Our premium wood panel garage doors feature your choice of quality stain-grade or paint-grade woods such as Hemlock, Cedar, and Mahogany.

  Garage door wood panels are not primed. Models 7101 - 7104 come with a paint grade finish that can be painted to match your home for a custom look. Model 7105 comes with a hemlock raised panel surface that can be stained or painted and offers an option to upgrade to Western Red Cedar. Not all wood types available for all models.

• Windows

  Choose Your Window
  Wayne Dalton also offers an extensive collection of windows available with four, six, eight, 16 and 21 panes. Whether you envision your doors with arched toppers or a tidy row of squares panes, you’ll find the perfect combination for brightening your garage space with natural light.

  Square Windows - True Vertical Divided

  • 4 Lite (S)

  • 6 Lite (S)

  • 8 Lite (S)

  Square Windows - True Cross Divided

  • 8 Lite (S)

  • 12 Lite (S)

  • 16 Lite (S)

  Arched Windows - True Vertical Divided

  • 4 Lite (S)

  • 6 Lite (S)

  • 8 Lite (S)

  Arched Windows - True Cross Divided

  • 8 Lite (S)

  • 16 Lite (S)

  • 12 Lite (S)

  Double Car Window Options

  • 16 Lite Single Arch

  • 16 Lite Double Arch

  Window patterns are shown for a typical single-car door. Spacing of windows may change depending on door size. Not all windows are available in all sizes.

  Double car windows are named by the number of window panes in the door. Example: 12 Lite Square for a single car door becomes 24 Lite Square for a double car door. For arched windows on double car doors, you have the option of selecting a single arch or double arch.

• Glass

  • Clear (1/8" standard)

  • Satin Etched

  • Obscure

• Hardware

  Embellish Your 7100 Series Wood Garage Door

  Decorative hardware and gleaming windows complement our carriage house wood doors’ sturdy wood panel garage doors. Inspired by the artistry of traditional blacksmiths, our hardware collections feature hinge straps, pull handles and other accent pieces inspired by the Old World and early Americana. Together, they are right in step with the authentic wood panel garage doors that set Wayne Dalton doors apart.

  Hammered knockers, lift handles and corner brackets are a nod to the rustic, yet beautiful metalware craftsmen have used to accent doors for centuries. Every piece is forged from black powder-coated steel finished with a hand-hammered look.

  Decorative Hardware Kits

  • Arrow

  • Aspen

  • Barcelona

  • Bean

  • Conifer

  • Fleur-de-Lis

  • Spear

  Hammered Knockers

  • Arrow

  • Aspen

  • Barcelona

  • Conifer

  • Fleur-de-Lis

  • Spear

  Lift Handles

  • Arrow

  • Aspen

  • Barcelona

  • Conifer

  • Fleur-de-Lis

  • Spear

  Premium Hardware

  • Lion's Head Knocker

  • Fleur-de-Lis Knocker

  • Fleur-de-Lis Lever Handle

  • Pyramid Clavos

  • Round Clavos

  • Studs

  • Hardware Corner

  • Fleur-de-Lis Lift Handle

  Decorative hardware kits come with four hinges and two pull handles. Double car doors come with two sets of decorative hardware kits. Additional accent pieces are available to match or complement each collection. Pull handle fit in center stile is dependent upon design and size of door.

• Documents

  Select All

  Please select a file. 0 Files Selected Download as Zip File

  • Garage Door Model 7000 Brochure
  • Garage Door Model 7100 Warranty
  • Wind Load Options - Models 100, 300 & 7000 Series
  • Residential Garage Door Catalog

Similar Products

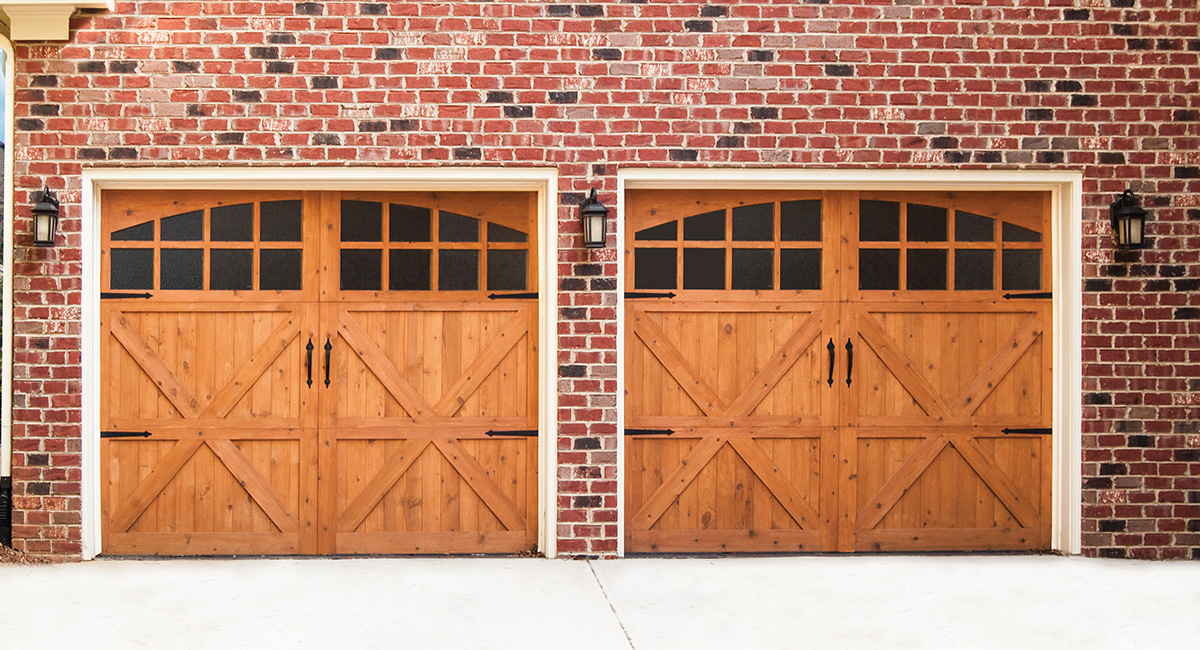

Carriage House Style Wood Doors 7400
