Insulated Sectional Steel Doors ThermoMark™ Models 5150/5200 and 5155/5255

Sectional | Insulated | ThermoMark™ | Model 5150 Flush | Sandstone| Vision Lites
Sectional | Insulated | ThermoMark™ | Model 5150 | White | All Window
Sectional | Insulated |ThermoMark™ | Model 5155 | White | Vision Lites
Sectional | Insulated | ThermoMark™ | Model 5150 | Brown | All Window - Clear Long
Sectional | Insulated | ThermoMark™ | Model 5150 Colonial | Almond | Solid
Sectional | Insulated | ThermoMark™ | Model 5255 | White | Vision Lites

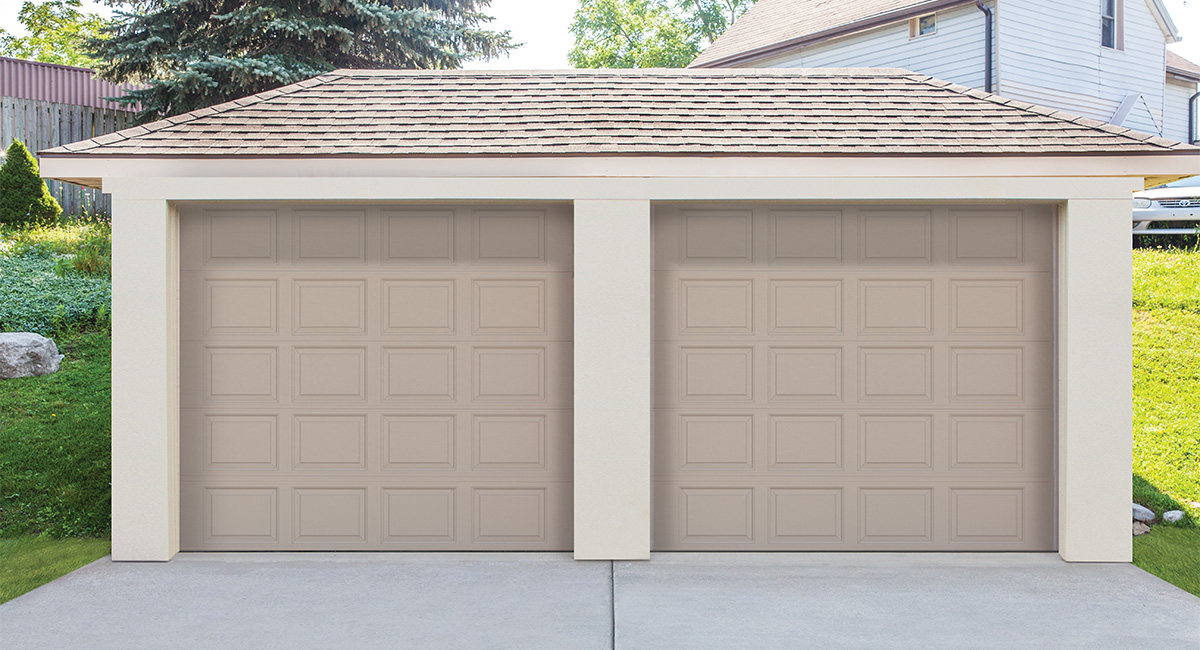

Sectional | Insulated | ThermoMark™ | Model 5150-5200 Colonial | Sandstone | Solid

Insulated Sectional Steel Doors ThermoMark™ Models 5150/5200 and 5155/5255

ThermoMark™ sectional steel commercial doors made to accommodate RVs, large trucks, heavy equipment, boats, trailers, and garage-based shops. Models 5150 and 5200 are the ideal choices if you’re looking for a commercial door that has a combination of strength and insulation but is also aesthetically appealing without the traditional industrial look. Then, Models 5155 and 5255 are insulated commercial sectional doors ideal for projects requiring something more rugged and durable, with excellent thermal insulation qualities. ThermoMark™ 5,000 Series is ideal for commercial or industrial applications where durability and aesthetics are required.

Ideal Applications Include:Manufacturing Plants   |
            Production Facilities   |
            Loading Docks    |
            Storage Facilities    |
            Commercial Buildings    |
            Industrial Facilities    |
            Drive-Thru Bays    |
            Truck Bays    |
            Vehicular Storage

Contact a Specialist Find A Wayne Dalton Dealer

Features

Standard Construction	Model 5150	Model 5200	Model 5155	Model 5255
Max. Width	20'2"	26'2"	20'2"	26'2"
Max. Height	20'1"	20'1"	20'1"	20'1"
U-factor*	.15	.12	.15	.12
R-value**	12.12	16.22	12.12	16.22
Sectional Thickness	1 3/8" 3-layer	1 7/8" 3-layer"	1.5" 3-layer	1 7/8" 3 layer"
Thermal Break	Yes	Yes	Yes	Yes
Spring Cycle	10,000	10,000	10,000	10,000
Exterior/Interior Surface	Embossed Wood Grain or Stucco Embossed / Pinstripe	Embossed Wood Grain or Stucco Embossed / Pinstripe	Stucco Embossed / Flush	Stucco Embossed / Flush
Exterior Surface	Stucco Embossed / Pinstripe	Stucco Embossed / Pinstripe	Stucco Embossed / Pinstripe	Stucco Embossed / Flush
Exterior Steel	0.015" (.35mm)	0.015" (.38mm)	0.015" (.35mm)	0.015" (.35mm)
Panel Designs	Yes (6)	Yes (5)	No	No
Air infiltration (IECC)	0.23 cfm/ft2 at 25 mph	0.23 cfm/ft2at 15 mph	0.23 cfm/ft² at 25mph (4.20 m3/hr/m2 at 24 kmph)	0.17 cfm/ft2at 15 mph
Sound Transmission (STC)	Class 20	Class 20	Class 20	Class 20
Wind Load (optional)	Yes***	Yes***	No	No

*U-factor is independently tested and verified per ANSI/DASMA 105 using solid doors and specific product sizes.
**Wayne Dalton uses a calculated door section R-value for our insulated doors.
***FBC, TDI, Miami Dade approved wind load reinforcement is available for hurricane-prone areas

Benefits

Low Maintenance / Durable Design

Factory finished interior and exterior hot-dipped, galvanized skins make installation easier, add life to the door, and provide greater durability
Steel end caps and hardware plates add commercial durability and longevity
Bulb-shaped bottom seal remains flexible even in extreme cold to help keep extreme weather conditions outside
Stucco steel back panels provide appealing aesthetics
The two-coat, baked-on polyester finish makes the surface virtually maintenance-free

Thermal Performance

Thermal break helps ensure year-round energy efficiency
The CFC- and HCFC-free polyurethane foamed-in-place insulation core is securely bonded to hot-dipped galvanized inner and outer skins to create a door that is significantly more efficient than conventional insulated steel doors
Sound-absorbing insulation makes door quieter in operation; reduces wind rattling

Warranty

10-Year limited warranty against delamination, cracking, splitting or deterioration due to rust-through

Operation
- Chain hoist operation
- Motor operation
Safety Focused
- Cable failure device
- Sensing edges
- Photo eyes
High-Performance Design
High Cycle Spring Options
- 25,000
- 50,000
- 100,000
High Usage Components

Available with WindSafe^®wind load reinforcement built to withstand specific high-wind pressures to meet local building codes.
*Proper wind load option selection is the responsibility of the business owner. Please consult your local building code official, certified engineer or architect for wind load requirements in your specific location.
Windload Commercial Doors

Only for Models 5150/5200:

Lite Options

Vision
Flush Panel
Short Panel
Long Panel
Vertical Short Panel
Vertical Long Panel (5150 only)
Stucco-Embossed Pinstripe

Window Options

Factory glazed windows

Window Placement Options

Horizontal
Vertical
All Window (5150 only)

* Windows may be arranged vertically or horizontally on Colonial, Ranch and Contemporary designs. Windows placed in the bottom section of a door must use DSB 1/8", or tempered, or 1/2" insulated glass.

Jamb seal

Only for Models 5155/5255:

Lite Options

Vision
Full View

Frame Colors

Black
Full View

All Models:

Mullions

3” Track

Special track designs

Impact Panel Option

• The Wayne Dalton Impact Section replaces the traditional bottom section on doors exposed to damage from forklifts and other warehouse traffic. Available for 21" and 24" sections or from 8’2” to 16’2” wide in one-foot increments, this fully adaptable design provides a superior fit, reduces downtime, costly repairs and has impact-resistant composite skin that surrounds an expanding polystyrene core.

Colors

Standard Paint Finishes

White
Almond
Sandstone
Terra Bronze
Brown
Black

Wood Grain Impression™ Bi-Directional Finishes

(Not available on Flush panel)

Western Cedar
Carbon Oak
Medium Oak

Stucco Embossed Pinstripe Finishes

White
Almond
Sandstone
Terra Bronze
Brown
Black

Finish Options	Model 5150	Model 5200	Model 5155	Model 5255	Panel
White Smooth	*	*			Short Panel, Long Panel, Vertical Short Panel, & Flush Panel
Almond	*	*			Short Panel, Long Panel, Vertical Short Panel, & Flush Panel
Sandstone	*	*	*	*	Short Panel, Long Panel, Vertical Short Panel, & Flush Panel
Terra Bronze	*	*			Short Panel, Long Panel, Vertical Short Panel, & Flush Panel
Brown	*	*			Short Panel, Long Panel, Vertical Short Panel, & Flush Panel
Black	*	*			Short Panel, Long Panel, Vertical Short Panel, & Flush Panel
Western Cedar	*				Vertical Short Panel & Vertical Long Panel
Carbon Oak	*				Vertical Short Panel & Vertical Long Panel
Medium Oak	*				Vertical Short Panel & Vertical Long Panel
White Stucco		*	*	*	Stucco-Embossed Pinstripe
Almond Stucco		*	*	*	Stucco-Embossed Pinstripe
Sandstone Stucco		*	*	*	Stucco-Embossed Pinstripe
Brown Stucco		*	*	*	Stucco-Embossed Pinstripe
Black Stucco		*			Stucco-Embossed Pinstripe

Custom Colors

Wayne Dalton’s custom painting process that offers more than 6,000+ colors.

Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Please contact your local Wayne Dalton Dealer for actual color samples to match with your home or business.

Paint Finishes

Arched Stockton Long
Ashton Long
Cascade Long
Cascade Short
Cathedral Long
Cathedral Short
Clear Long
Clear Short
Double Narrow
Narrow
Prairie Long
Prairie Short
Ruston Long
Sherwood Long
Sherwood Short
Stockbridge Long (3-Lite)
Stockbridge Long (4-Lite)
Stockford Long
Stockton Long (4-Lite)
Stockton Long (6-Lite)
Stockton Long (8-Lite)
Stockton Long (8-Lite Arched)
Stockton Long (12-Lite)
Stockton Short
Waterton Long
Waterton Short
Williamsburg Long
Williamsburg Short
Wyndbridge Long
Arched Stockton Long 4 pc
Williamsburg Long 4 pc

Wood Grain Impressions™ Bi-Directional Finishes

Clear Long
Clear Short
Prairie Long
Prairie Short
Stockton Long (8-Lite)**†
Stockbridge Long (3-Lite)
Stockbridge Long (4-Lite)†
Stockton Long (4-Lite)
Stockton Long (6-Lite)
Stockton Short†

Choice of single or double arch is available for arched top double car windows.

Stucco Embossed Pinstripe and Flush Panels

Aluminum Full-View
Bubble Lite
Cascade Short
Cathedral Short
Clear Short
Clear Long
Stockton Short
Thermolite
Waterton Short
Williamsburg Short

Not all windows available on all door sizes.
See dealer for details.
See website for additional window options.

WINDOW AVAILABILITY BY DOOR PANEL STYLE
Short Panel	Vertical Short Panel	Long & Vertical Panel	Flush Panel & Stucco embossed Pinstripe Panel
Cascade Short	*Arched Stockton Long	*Arched Stockton Long	*Aluminum Full View
Cathedral Short	Ashton Long	Ashton Long	*Arched Stockton Long
Clear Short	Cascade Short & Long	Cascade Long	Ashton Long
Prairie Short	Cathedral Short & Long	Cathedral Long	**Bubble Lite
Sherwood Short	Clear Short & Long	Clear Long	Cascade Short & Long
Stockton Short	Prairie Short & Long	Prairie Long	Cathedral Short & Long
Waterton Short	Ruston Long	Ruston Long	Clear Short & Long
Williamsburg Short (4 pc & 8 pc)	Sherwood Short & Long	Sherwood Long	Prairie Short & Long
	Stockbridge Long (3-Lite)	Stockbridge Long (3-Lite)	Ruston Long
	Stockbridge Long (4-Lite)	Stockbridge Long (4-Lite)	Sherwood Short & Long
	Stockford Long	Stockford Long	Stockbridge Long (3-Lite)
	Stockton Long (4, 6, 8 & 12-Lite)	Stockton Long (4, 6, 8 & 12-Lite)	Stockbridge Long (4-Lite)
	Stockton Long Arch 8-Lite	Stockton Long Arch 8-Lite	Stockford Long
	Stockton Short (4-Lite)	Waterton Long	Stockton Long (4, 6, 8 & 12-Lite)
	Waterton Short & Long	Williamsburg Long (2 pc & 4 pc)	Stockton Long Arch 8-Lite
	Williamsburg Long (2 pc & 4 pc)	Wyndbridge Long (2 pc, 3 pc, 4 pc, 5 pc)	Stockton Short (4-Lite)
	Wyndbridge Long (2 pc, 3 pc, 4 pc, 5 pc)		**Thermolite
			Waterton Short & Long
			*Williamsburg Long (2 pc & 4 pc)
			*Williamsburg Short (4 pc & 8 pc)
			Wyndbridge Long (2 pc, 4 pc, 5 pc)

*Available in single and double arch.
**Available on Stucco Embossed Pinstripe only.

WINDOW AVAILABILITY BY DOOR PANEL STYLE


Double Row Option (top and intermediate) Available on Short, Long, Vertical Short, Vertical Long and Flush panels.	Vertical Option (left or right) Available on Short, Long, Vertical Long, and Flush panels.	Vertical and Horizontal (left or right) Available on Short, Long, Vertical Short and Flush panels.	All Window Option Flush panels.

Windows may be arranged vertically or horizontally on Short, Long and Flush designs. Windows placed in the bottom section of a door must use DSB 1/8", or tempered, or 1/2" insulated glass.
