High Speed Metal Doors Model 889
High Speed Metal Doors Model 889

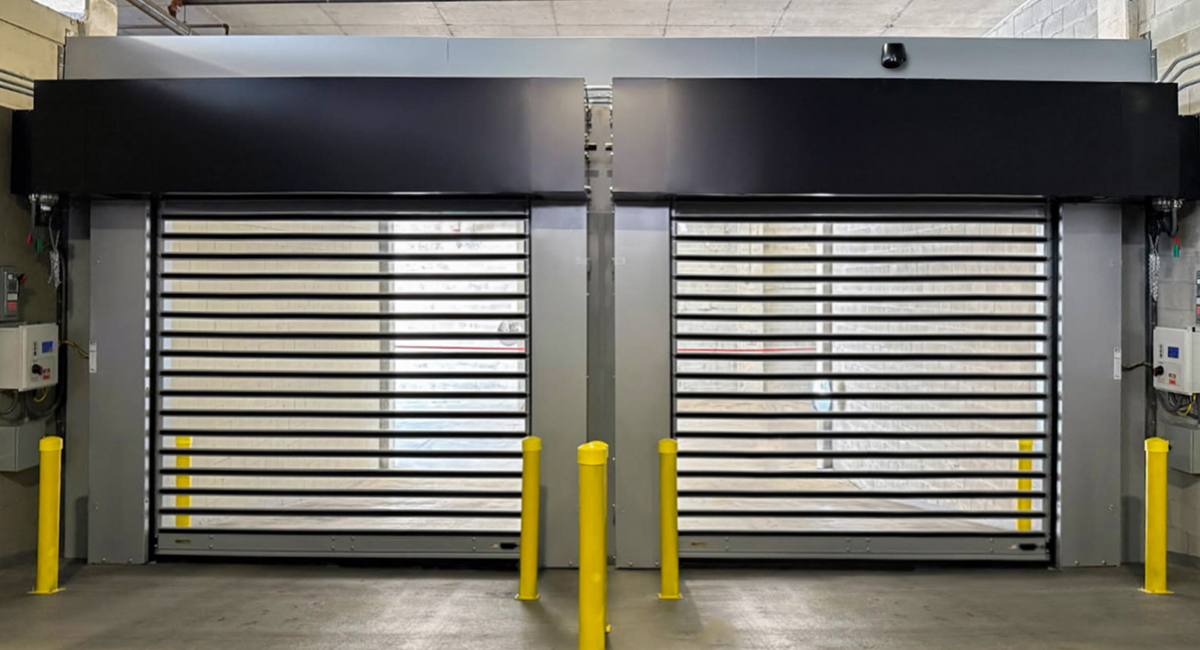

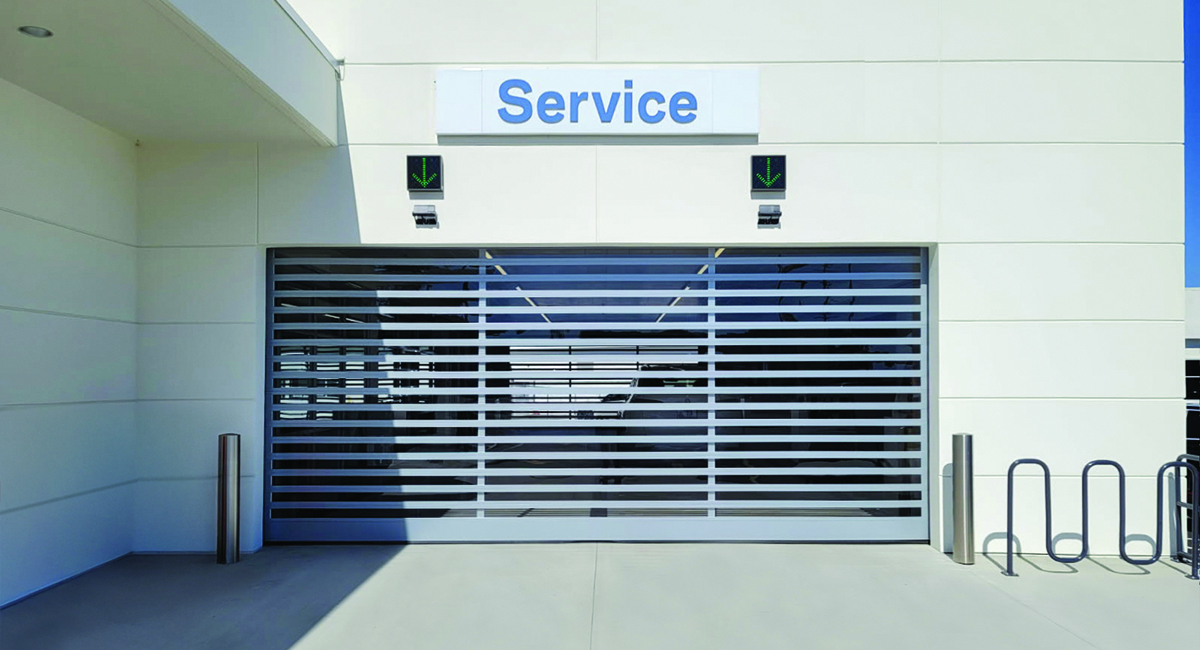

Exterior full vision high speed door, Model 889 ADV-Xtreme, is ideal for applications where aesthetics and visibility are a priority. Constructed with a fully assembled curtain, this door is easy to install and maintain. Model 889 ADV-Xtreme is a full vision high speed metal door that features a patented helical-designed steel head plate that helps prevent metal curtain contact and provides smooth operation. A patented curtain monitoring device ensures the door has a redundant system to monitor the position of the door. The high speed metal door design provides visibility, durability and security.
Ideal Applications Include:
Auto Dealerships | Retail | Manufacturing
Features
| Standard Construction | Model 889 |
| Openings | Exterior/Interior (mount inside) |
| Max. Width | 20' |
| Max. Height | 21' |
| Max. Opening Speed | up to 80” per second |
| Max. Closing Speed | up to 20” per second |
| Curtain Material | Aluminum and scratch-resistant polycarbonate |
| Vision | Scratch-resistant polycarbonate panels |
| Operation | Direct drive motor and gearbox system with field changeable universal handing and door stop safety device |
| Control Panel | Variable frequency drive, self-diagnostic, programmable service reminders, padlockable fused disconnect NEMA 4X rated, cULus listed |
| Supply Voltages | 230V AC 3 PH 460V AC 3 PH 575V AC 3 PH† |
| Safety Features | Obstruction Safety Detection Reversing Sensing Edge |
| Wind Load* | up to 50.0 psf |
*Wind load is the ultimate pressure tested at door width of 15'.
†Requires stand-alone mounted transformer
Benefits
High Performance Design
- Springless design for over 1 million cycles and requires minimal interruption for maintenance
- Gravity drive system coupled with variable frequency drive eliminates sudden jolts from door start and stop operation
- Direct-mounted gear drive minimizes wear and tear
Durable Construction
- Full-view door with corrosion-resistant aluminum and clear vision, impact-resistant polycarbonate panels
- Steel headplate utilizes high strength, durable rollers to prevent metal curtain contact and provides smooth operation
- Independently tested and capable of withstanding pressure of up to 50 psf
- *Wind load is the ultimate pressure tested at door width of 15'. Wind load* up to 50 psf
Installer Friendly
- Fully-assembled curtain arrives pre-wrapped in headplate and trusses, ready for installation
- Completely hinged guide for easy access and maintenance
- Pre-wired motor connection and plug and play accessories reduces need for licensed electrician
Safety Focused
- Patented integrated curtain monitoring device ensures the door has a redundant system to monitor the position of the door
- Safety light curtain minimizes contact with objects in the doorway
- Monitored wireless reversing edge
Warranty
- 5 Year Limited Warranty
Similar Products
-

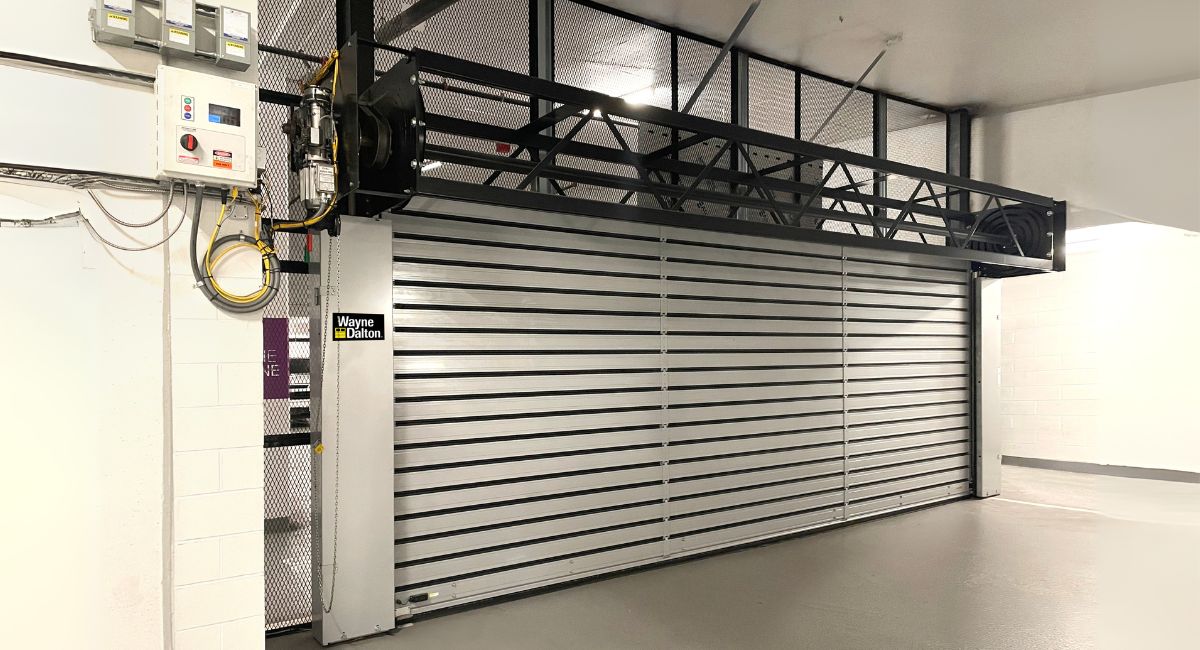

High Speed Metal Doors Model 888
