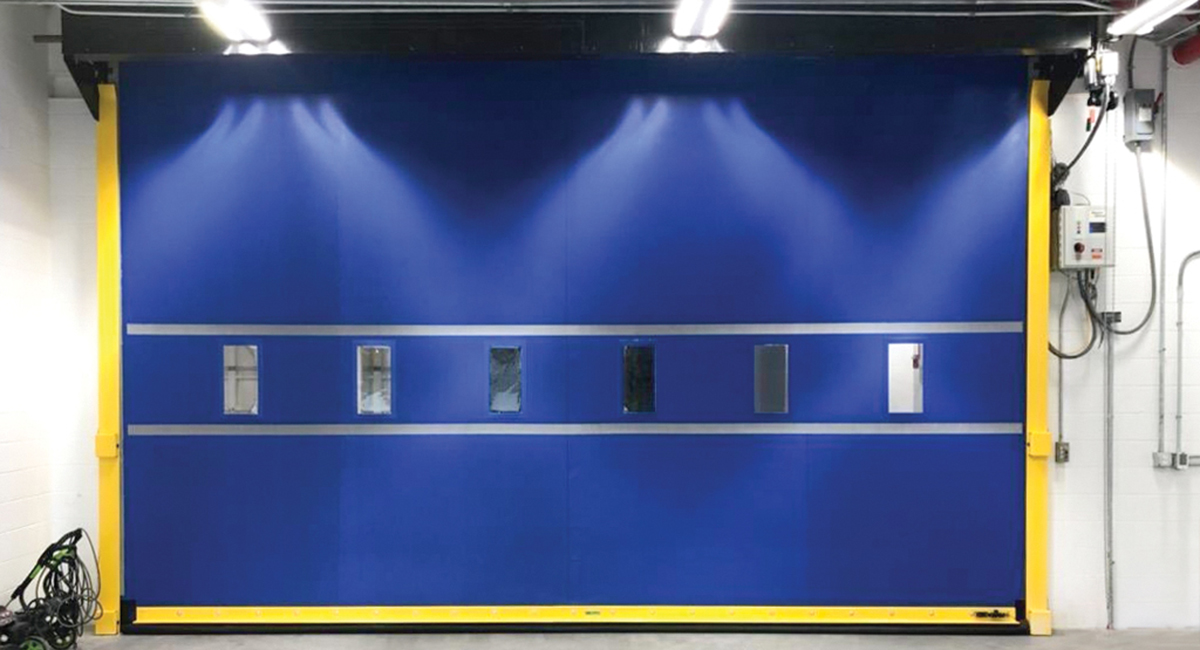

High Speed Metal Doors Model 888

High Speed Metal Doors Model 888

Built tough with power, security, and durability in mind, Model 888 ADV-Xtreme is ideal for applications where security and performance are a priority. This high speed metal door is constructed with dual-walled aluminum that can withstand pressure up to 100 psf*.‬‬‬ Model 888 ADV-Xtreme also features a patented helical-designed steel head plate that helps prevent metal curtain contact and provides smooth operation. A patented curtain monitoring device ensures the door has a redundant system to monitor the position of the door. High speed metal doors are designed for quick installation and provide easy access to maintain.


Ideal Applications Include:

Parking Garages  |  Manufacturing   |  Auto Dealerships

Features

Standard ConstructionModel 888
OpeningsExterior/Interior (mount inside)
Max. Width26'
Max. Height21'
Max. Opening Speedup to 80” per second
Max. Closing Speedup to 20” per second
Curtain MaterialDual-walled aluminum
OperationDirect drive motor and gearbox system with field changeable universal handing and door stop safety device
Control PanelVariable frequency drive, self-diagnostic, programmable service reminders, padlockable fused disconnect NEMA 4X rated, cULus listed
Supply Voltages230V AC 3 PH
460V AC 3 PH
575V AC 3 PH
Safety FeaturesObstruction Safety Detection
Reversing Sensing Edge
Wind Load*up to 100.0** psf

*Wind load is the ultimate pressure tested at door width of 19'.

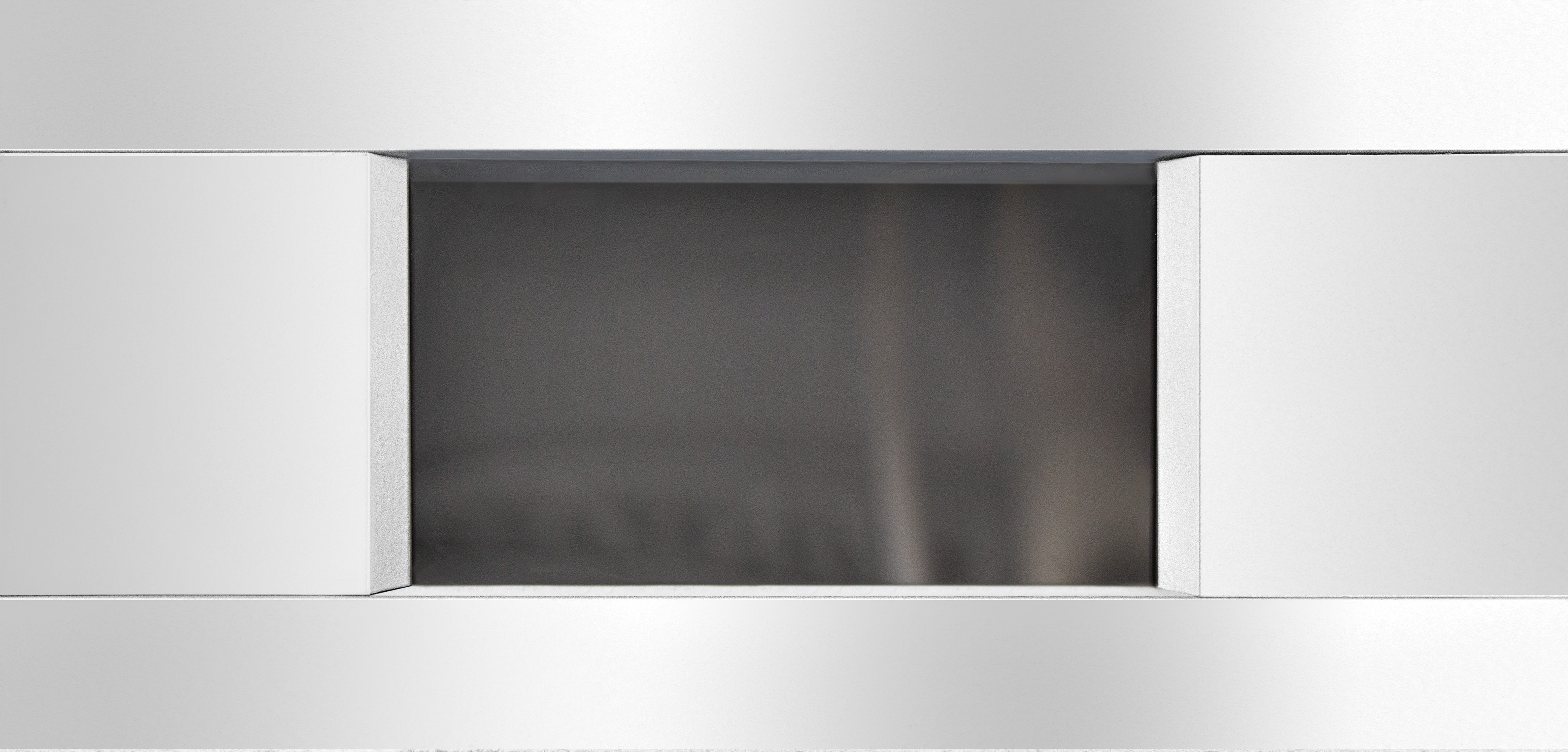

**Up to +50/-50 psf with optional vision panels
Requires stand-alone mounted transformer



Benefits

High Performance Design

  • Springless design for over 1 million cycles and requires minimal interruption for maintenance
  • Gravity drive system coupled with variable frequency drive eliminates sudden jolts from door start and stop operation
  • Direct-mounted gear drive minimizes wear and tear

Durable Construction

  • Dual-walled, solid aluminum curtain for security and privacy
  • Steel headplate utilizes high strength, durable rollers to prevent metal curtain contact and provides smooth operation

Installer Friendly

  • Fully-assembled curtain arrives pre-wrapped in headplate and trusses, ready for installation
  • Completely hinged guide for easy access and maintenance
  • Pre-wired motor connection and plug and play accessories reduces need for licensed electrician

Safety Focused

  • Patented integrated curtain monitoring device ensures the door has a redundant system to monitor the position of the door
  • Safety light curtain minimizes contact with objects in the doorway
  • Monitored wireless reversing edge

Warranty

  • 5 Year Limited Warranty
