High Speed Interior Fabric Doors Model 881 ADV-Xtreme
-
![High Speed Interior Fabric Door]()
High Speed | Fabric | Model 881 | Red | Lites
-
![High Speed Interior Fabric Door]()

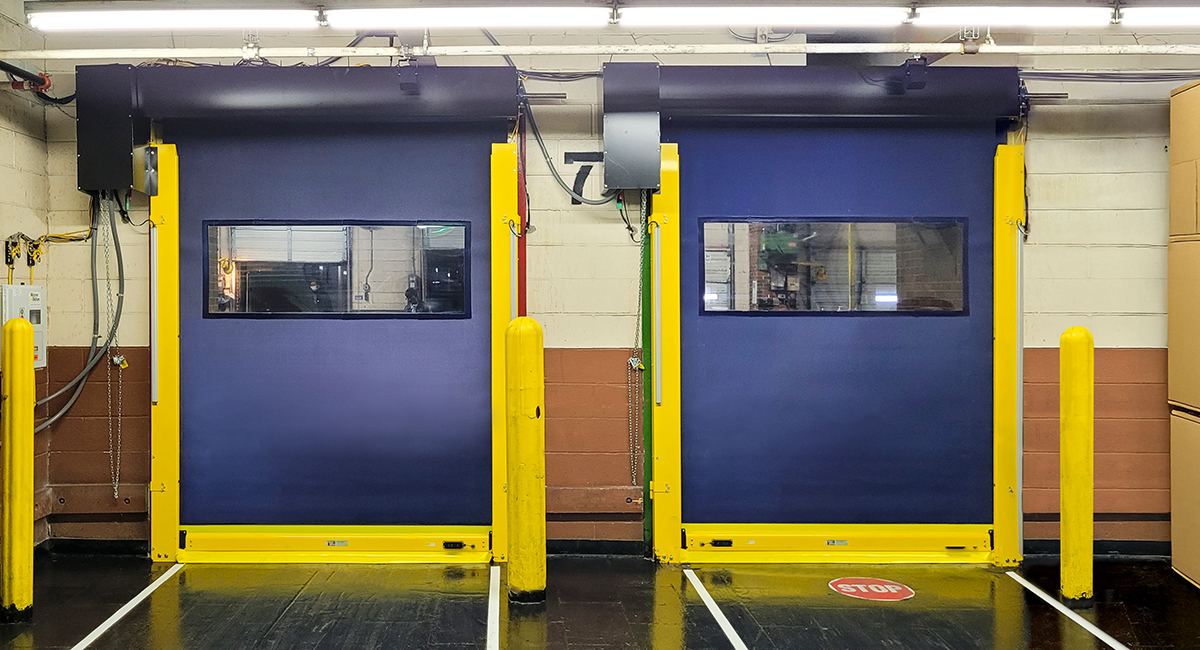

High Speed | Fabric | Model 881 | Blue | Lites
-
![High Speed Interior Fabric Door]()
High Speed | Fabric | Model 881 | Red | Lites
High Speed Interior Fabric Doors Model 881 ADV-Xtreme
Model 881 ADV-Xtreme is an interior high speed fabric door to satisfy commercial applications where indoor distribution or manufacturing facilities require environmentally controlled environments for high traffic areas from forklift operation. Model 881 ADV-Xtreme high speed interior fabric door has an airtight design to prevent airborne contaminants from entering the controlled and non-controlled environments and reduces air exchange to no higher than .236 cfm/sf (ASTM E-283). Model 881 can withstand a pressure of up to 7.5 psf, making it an excellent option to separate high and low-pressure rooms in large facilities.
Ideal Applications Include:
Manufacturing / Heavy Manufacturing | Warehouse / Distribution | Pharmaceutical | Cold Storage | Food & Beverage
Features
| Standard Construction | Model 881 |
| Openings | Interior / Interior |
| Max. Width | 14' |
| Max. Height | 14' |
| Max. Opening Speed | up to 70” per second |
| Max. Closing Speed | up to 40” per second |
| Certified Air Tightness | <0.236 cfm/sq ft (independently tested to ASTM E283 standard) |
| Breakaway Self-Reset | Yes |
| Curtain Material | 2 layers of light PVC-coated polyester with 1 layer of polyester weave |
| Curtain Lock | Yes |
| Operation | Direct drive motor and gearbox system with field changeable universal handing and door stop safety device |
| Control Panel | Variable frequency drive, self-diagnostic, programmable service reminders, pad-lockable fused disconnect NEMA 4X rated, cULus listed |
| Supply Voltage | 120V AC 1 PH 208V AC 1 PH† 220V AC 1 PH 208V AC 3 PH† 230V AC 3 PH 460V AC 3 PH 575V AC 3 PH† |
| Safety Features | Obstruction Safety Detection & Reversing Sensing Edge |
| Wind Load* | up to 7.5 psf |
*Wind load is the ultimate pressure tested at a door width of 10'
**Single phase available up to 10'x10' doors.
(†Requires stand-alone mounted transformer)
Benefits
High Performance Design
- Strutless design lowers the operational noise of the door for quiet and smooth operation
- Springless design requires minimal interruption for maintenance
- Direct-mounted gear drive minimizes wear and tear
- Variable frequency drive eliminates sudden jolts from door start/stop
Independently-Tested Airtight Design
- Prevents airborne contaminants from entering a controlled environment
- Reduces air exchange to no higher than .236 cfm/sf (ASTM E-283)
Field Repairable
- Patented breakaway system design with impact detection and push button self-repair
- Patented curtain lock makes door easy to repair in the field
- Hinged guides provide easy access for maintenance
Installer Friendly
- Pre-assembled sub-assemblies for easier installation
- Plug-and-play wiring reduces the need for a licensed electrician
Warranty
- 5-year Limited Warranty on drive motor and gearbox
- 1-year Limited Warranty on all other components
