Sectional Steel Doors Model 2411 & 2415
-
![sectional steel doors]()

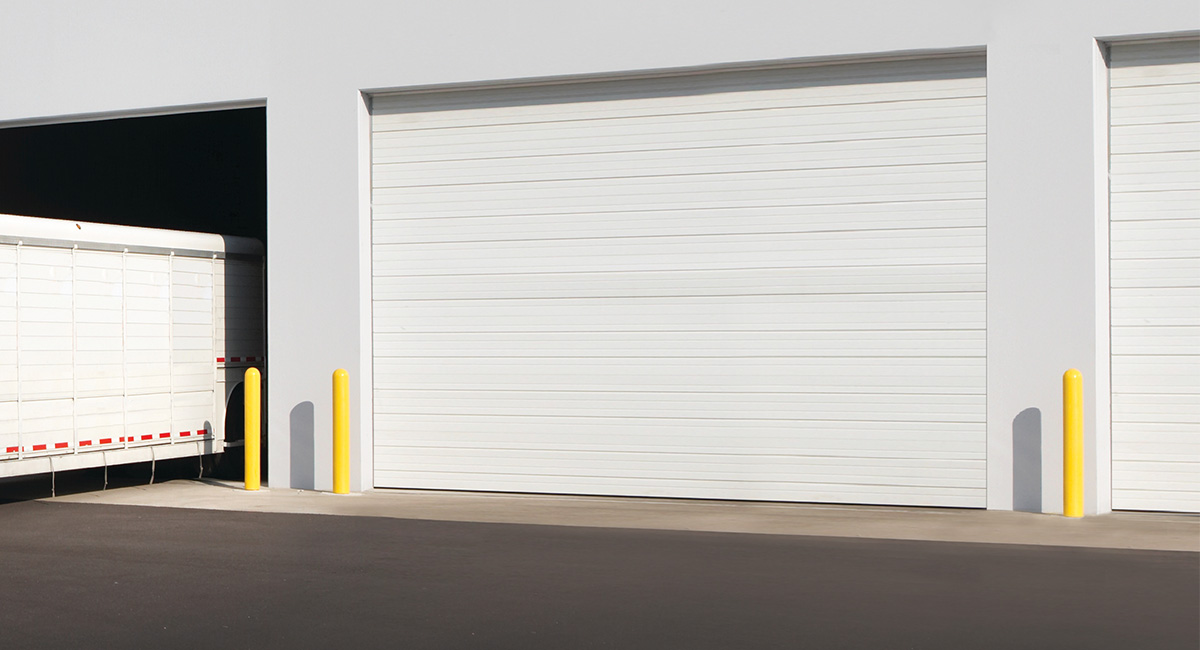

Sectional | Non-Insulated | Model 2411 | White | Solid
-
![sectional steel doors]()

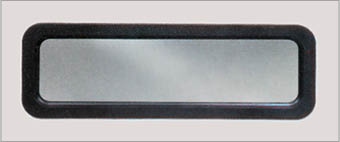

Sectional | Non-Insulated | Model 2415 | Brown | Vision Lites
-
![sectional steel doors]()
Sectional | Non-Insulated | Model 2411 | White | Solid
-
![sectional steel doors]()
Sectional | Non-Insulated | Model 2415 | White | Vision Lites
-
![dock doors]()
Sectional | Non-Insulated | Model 2415 | White | Solid
-
![sectional steel doors]()
Sectional | Non-Insulated | Model 2411 | White | Vision Lites
Sectional Steel Doors Model 2411 & 2415
An attractive and durable commercial sectional door, our Models 2411 and 2415 provide reliable service for a variety of moderate to heavy-duty applications. These doors are designed and built with quality and appearance that feature nominal 24-gauge ribbed steel sections in a smooth or stucco-embossed finish. The C-shaped stiles, have pre-located, extruded holes for quick, secure mounting of hinges. It also features end stiles that wrap around the exterior of each section to protect the section face from wear caused by the door jambs. These doors can come in a wide variety of sizes and configurations to fit most door openings and can also be customized with our time-saving simple install system or increase section thickness with the impact panel option. Engineered to provide commercial strength, the commercial sectional doors are ideal for high-traffic applications at a competitive value.
Ideal Applications Include:
Distribution Centers | Manufacturing Plants | Production Facilities | Storage Facilities | Agricultrural Facilities | Municipal Buildings | Truck Bays
Features
| Standard Construction | Model 2411 | Model 2415 |
| Max. Width | 20'2" | 32'2" |
| Max. Height | 16'1" | 22'1" |
| Steel Gauge | Nominal 24, ribbed | 24 |
| Joint Profile | Shiplap | Shiplap |
| Spring Cycles | 10,000 | 10,000 |
| Exterior Surface | Stucco Embossed / Ribbed | Smooth / Ribbed |
| R-value* | 7.64 | 7.64 |
| Wind Load (optional) | No | No |
*Wayne Dalton uses a calculated door section R-value for insulated doors.
Benefits
Durable Design
- Heavy-duty c-shaped vertical stiles provide added strength and allow a quick, secure hinge attachment
- End stiles wrap around the exterior of each section to protect the section face from wear caused by the door jambs
- Comes in a wide variety of sizes and configurations that provide durability and value
- The exterior skin helps increase strength while enhancing the building’s visual appearance
Warranty
- 1-Year against defects in materials and workmanship
Commercial Operators
