Modern Glass Garage Door Model 8800

Bronze Powder Coated Frame | Satin Etched Glass
Aluminum Glass | Model 8800

Black Anodized | White Laminated Glass
Aluminum Glass | Model 8800

Black Anodized | Clear Glass
Aluminum Glass | Model 8800

Clear Anodized | White Laminated Glass
Aluminum Glass | Model 8800

Black Anodized | Satin Etch Glass
Aluminum Glass | Model 8800

Black Anodized | Satin Etch Glass
Aluminum Glass | Model 8800

Clear Anodized | Satin Etch Glass
Aluminum Glass | Model 8800

Bronze Anodized | Clear Glass
Aluminum Glass | Model 8800

Clear Anodized | Clear Glass

Modern Glass Garage Door Model 8800

From Adirondack country and the mossy woods of the deep south to the pueblo dotted landscaped of sunbaked Sedona and grand log and stone citadels in the Pacific Northwest, our glass panel garage door adds a sublime addition to homes from coast to coast.

A glass panel garage door enhances the carefully crafted architecture of a custom dream home. It just as easily elevates the aesthetic of an existing home or remodel. A sleek glass panel garage door adds to the rich textural mix, and creates added visual interest when paired with stone, wood, adobe, stucco, metal, concrete and nearly every finishing material.

Our Model 8800 glass panel garage door melds elements of industrial style with a nod to beloved craftsman and steampunk styles. The bold geometric configuration of its anodized or powder coated aluminum frame serves as linear foil for sleek glass. A variety of glass options—Clear, Tinted, Satin-Etched or Laminated—provide a wealth of creative options when paired with a selection of finishes.

From light and airy to dark and bold, it’s easy to create a glass panel garage door that complements the unique style of your home.

Design your garage door Find A Wayne Dalton Dealer

Wayne Dalton offers a 5-Year Limited Warranty on the aluminum for this garage door and a One-Year Limited Warranty on the glass. Please reference the warranty document for details.

Design Your Custom Glass Panel Garage Door

Wayne Dalton offers a sizable selection of options so you can easily create a customized glass panel garage door perfect for your home. Mix and match frame finishes and glass types to suit your personal taste.

Whether you prefer the crisp geometric look of a high contrast door or want a dark and dramatic tone-on-tone look, our on-trend glass panel garage door adds the perfect finishing touch. From well-loved craftsmen and contemporary new-builds, to timber mountain retreats and family homes in the ‘burbs, the aluminum glass door elevates so many architectural styles.

Features

Our aluminum glass door is gorgeous, but it’s also built with exceptional care to ensure it provides years of security and easy-care living. High-end features make the Model 8800:

Beautiful
Aluminum rails and stiles are designed with non-beveled edges and straight lines to give the aluminum glass door a true contemporary style.
Durable
Constructed with anodized or powder-coated aluminum structure, our aluminum glass door features reinforced fins and heavy-duty track and brackets for years of smooth, trouble-free operation. An upgrade to a 25,000-cycle spring delivers almost twice the life of a standard torsion spring.
Weather Resistant
Tongue-and-groove joints provide a great weather barrier. A flexible vinyl bottom seal ensures the aluminum glass door keeps dirt and elements from entering your garage.
Thermally Efficient
Optional polyurethane insulation adds a U-factor of .27 for low e insulated glass and .29 for insulated glass (R-value of up to 4.36) to our aluminum glass door.
Guaranteed
Model 8800 offers a Five-Year Limited Warranty on the aluminum and One-Year Limited Warranty on the glass.

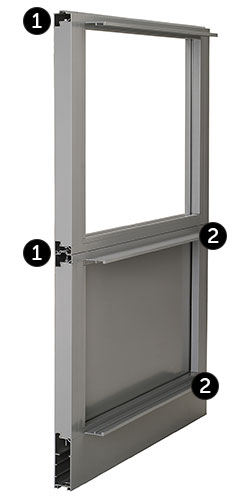

Door Construction

Effective Joint Seals – Snug-fitting tongue-and-groove section joints help prevent wind and weather from entering the garage.
Reinforcing fins on all top sections, and as needed on intermediate sections, provide years of smooth, trouble-free operation. The fins are the extruded part of the door sections and are not visible through the glass

Aluminum rails and stiles are designed with non-beveled edges and straight lines to create a true contemporary style.

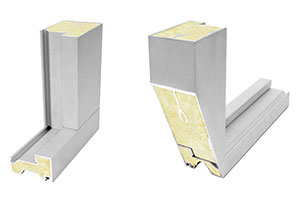

Optional Insulated Frame

garage door construction of aluminum glass garage doors

Insulated rails and stiles are available as an option. Foamed-in-place polyurethane insulation fills the rails and stiles providing enhanced thermal efficiency that adds a U-factor as low as .27 (R-value* of up to 4.36) on the door.

*Wayne Dalton uses a calculated door section U-factor and R-value for our insulated doors.

Choose Your Frame

The glass panel garage door is available in two frame styles: standard and double-wide. Standard frames come in three widths with two, three or four panels across. Double-wide frames feature heavier outer rails. They come in four widths with two, three, four or five panels across.
Standard Frames
- 8 ft. Wide (2 panel)*
- 9 ft.-12 ft. Wide (3 panel)
- Over 12 ft. Wide (4 panel)
Double Wide Frames
- 8 ft. Wide (2 panel)*
- 9 ft.-12 ft. Wide (3 panel)
- Over 12 ft. Wide (4 panel)
- 16 ft. Wide (4 panel)
- 18 ft. Wide (5 panel)**
*A 2-panel option is available for 9' wide doors.
**A 4-panel option is available for 18' wide doors. Due to the weight of this door, it is only offered in the Double-Wide frame.
Panel spacing drawings shown are for illustrative purposes only and do not reflect actual stile and rail dimensions. If you are ordering a 16’3” or wider door, as well as a single door, check with your dealer to ensure that the door frames match.
Choose Your Finish
Your designer glass panel garage door is available in three anodized finishes—Clear (standard), Bronze and Black. Three standard powder-coated finishes are offered in White, Dark Bronze and Black. In addition, homeowners may upgrade to a custom RAL powder-coated finish by choosing from approximately 200 color options.
Anodized Finishes
- Clear
- Dark Bronze
- Black
Powder Coat Finishes
- *White
- Dark Bronze
- Black
*Only Available in Opaque white glass color
Actual door colors may vary slightly from the website images due to fluctuations in paint or anodizing processes.

RAL Powder Coat*
Approximately 200 powder coat options are available to complement the exterior colors of a building.
*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.
Choose Your Glass

Gleaming glass is at the heart of our stunning glass panel garage door Model 8800 is available with five gorgeous options. Choose glass in Clear, Obscure, Green Tinted, Gray Tinted, Bronze Tinted, Satin Etched or White Laminated.
- Clear (1/8" standard)
- Obscure
- Gray Tinted
- Bronze Tinted
- Green Tinted Glass
- Satin Etched
- White Laminated
Tempered safety glass, acrylic or solid panels are available in a wide variety of colors, tints and styles. Custom glass is also available. See your Wayne Dalton Dealer for details. Most panel styles are also available in both single pane and insulated configurations.
