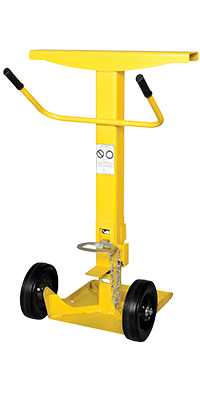

Trailer Stands
Standard and premium trailer stands are self-leveling, easy-to-deploy stabilizing stands designed for high-traffic loading docks. Featuring gas-shock systems, large all-terrain wheels, and secure locking pins, they enhance safety and efficiency.
| Feature | Standard Model 850343.0001 | Premium Model 850343.0002 |
|---|---|---|
| Static Load Capacity | Up to 100,000 lbs. (45,359 kg) | |
| Large, weight-distributing base | 17” x 18 1/2” (432 x 470 mm) | |
| Large trailer-contact pad | 5” x 30” x 1/4” (127 x 762 x 6 mm) | Reinforced 5” x 30” x 1/4” (127 x 762 x 6 mm) |
| Wheels/tires | 10” (254 mm) diameter wheels | 16” (406 mm) diameter solid rubber tires |
| Gas-shock, self-leveling system | With security pin | With lever locking mechanism |
| Warranty | 1-year limited warranty | |
| Working Range | 42-1/2” to 52-1/2” (1079 mm to 1334 mm) | 38″ to 48″ (965 mm to 1219 mm) |
Lights
Increase safety at the loading dock with dock lights that provide energy efficient illumination the inside the trailer. Movable arms have a 40" reach and position the lights as needed or completely out of the way. The rugged polycarbonate housing and electric components of these lights are designed to withstand impacts and the rigors of the loading dock. Choice of the sturdy dual arm or single arm for vertical and horizontal adjustability. Add a fan to help keep workers comfortable when it's warm.
| Lights - 40" Reach | |||
|---|---|---|---|
| Arm | Fan | Part Number | |
| Led, Polycarbonate Housing | Dual Arm | Not Included | 850300.0001 |
| Led, Polycarbonate Housing | Dual Arm | Included | 850300.0002 |
| Led, Polycarbonate Housing | Single Arm | Not Included | 850300.0003 |
| No Bulb, Polycarbonate Housing | Dual Arm | Not Included | 850301.0001 |
| No Bulb, Polycarbonate Housing | Dual Arm | Included | 850301.0002 |
| No Bulb, Polycarbonate Housing | Single Arm | Not Included | 850301.0003 |
